Concept 17: Multi-Modal AI - Vision and Language
Concept 17: Multi-Modal AI - Vision and Language
ℹ️ Definition: Multi-modal AI systems process and generate information across multiple modalities (vision, language, audio) by learning joint representations. These models understand relationships between different data types, enabling applications like image captioning, visual question answering, and text-to-image generation.
Learning Objectives
By the end of this lesson, you will be able to:
- Explain how cross-modal learning enables models to connect vision and language
- Understand the CLIP architecture and contrastive learning objective
- Implement zero-shot image classification using learned embeddings
- Apply text-to-image generation with Stable Diffusion (connecting to Lesson 13)
- Build image captioning systems with encoder-decoder architectures
- Analyze how multi-modal AI extends RLHF to vision domains
Introduction: Beyond Single Modalities
For the past 16 lessons, we've worked primarily with single-modality data:
- RL (Lessons 1-8): Environments with state vectors or images
- GenAI (Lessons 9-15): Text generation (LLMs) or image generation (GANs, Diffusion)
- RLHF (Lesson 16): Aligning text models with human preferences
The Next Frontier: What if AI could understand the relationship between images AND text?
Real-World Examples:
- Google Lens: Take a photo of a plant -> Get its name and care instructions
- DALL-E: Type "a cat wearing a space suit" -> Get a photorealistic image
- GPT-4 Vision: Upload a chart -> Ask questions about the data
- Claude (this AI!): Analyze screenshots, diagrams, and documents
The Core Challenge: Vision and language are fundamentally different:
| Property | Vision | Language |
|---|---|---|
| Structure | 2D/3D spatial (pixels) | 1D sequential (words) |
| Size | 224x224x3 = 150K values | ~50 tokens = 50 values |
| Semantics | Continuous (colors, shapes) | Discrete (words, grammar) |
| Ambiguity | One image, many descriptions | One description, many images |
Solution: Learn a joint embedding space where vision and language align.
Cross-Modal Learning: The Foundation
The Joint Embedding Idea
Goal: Map images and text to the same vector space, where semantically similar items are close together.
Intuition:
- Image of a dog and text "a dog" should be close in embedding space
- Image of a dog and text "a cat" should be far apart
- Multiple descriptions of the same image should cluster together
Mathematical Formulation:
vbnet
f: Images → R^d (image encoder)
g: Text → R^d (text encoder)
Where d is the embedding dimension (e.g., 512 or 1024).
Contrastive Learning
Training Objective: Given a batch of (image, text) pairs:
- Pull matching pairs together in embedding space
- Push non-matching pairs apart
Contrastive Loss (InfoNCE):
python
def contrastive_loss(image_embeddings, text_embeddings, temperature=0.07):
"""
image_embeddings: [batch_size, d]
text_embeddings: [batch_size, d]
"""
# Normalize embeddings
image_embeddings = F.normalize(image_embeddings, dim=-1)
text_embeddings = F.normalize(text_embeddings, dim=-1)
# Compute similarity matrix: [batch_size, batch_size]
logits = torch.matmul(image_embeddings, text_embeddings.T) / temperature
# Labels: diagonal elements are positive pairs
labels = torch.arange(len(logits), device=logits.device)
# Cross-entropy loss (image-to-text and text-to-image)
loss_i2t = F.cross_entropy(logits, labels)
loss_t2i = F.cross_entropy(logits.T, labels)
return (loss_i2t + loss_t2i) / 2
Why This Works:
- Positive pairs (matching image+text) have high similarity (near 1.0)
- Negative pairs (non-matching) have low similarity (near 0.0)
- Temperature controls how "sharp" the distribution is
Visualization:
less
Before Training:
Image: [dog photo] → [0.1, 0.2, 0.3, ...]
Text: "a dog" → [0.5, 0.1, 0.8, ...]
Similarity: 0.23 (random)
After Training:
Image: [dog photo] → [0.7, 0.3, 0.1, ...]
Text: "a dog" → [0.6, 0.4, 0.2, ...]
Similarity: 0.91 (high!)
CLIP: Contrastive Language-Image Pre-training
Paper: "Learning Transferable Visual Models From Natural Language Supervision" (Radford et al., 2021)
Big Idea: Train vision and text encoders jointly on 400 million (image, caption) pairs from the internet using contrastive learning.

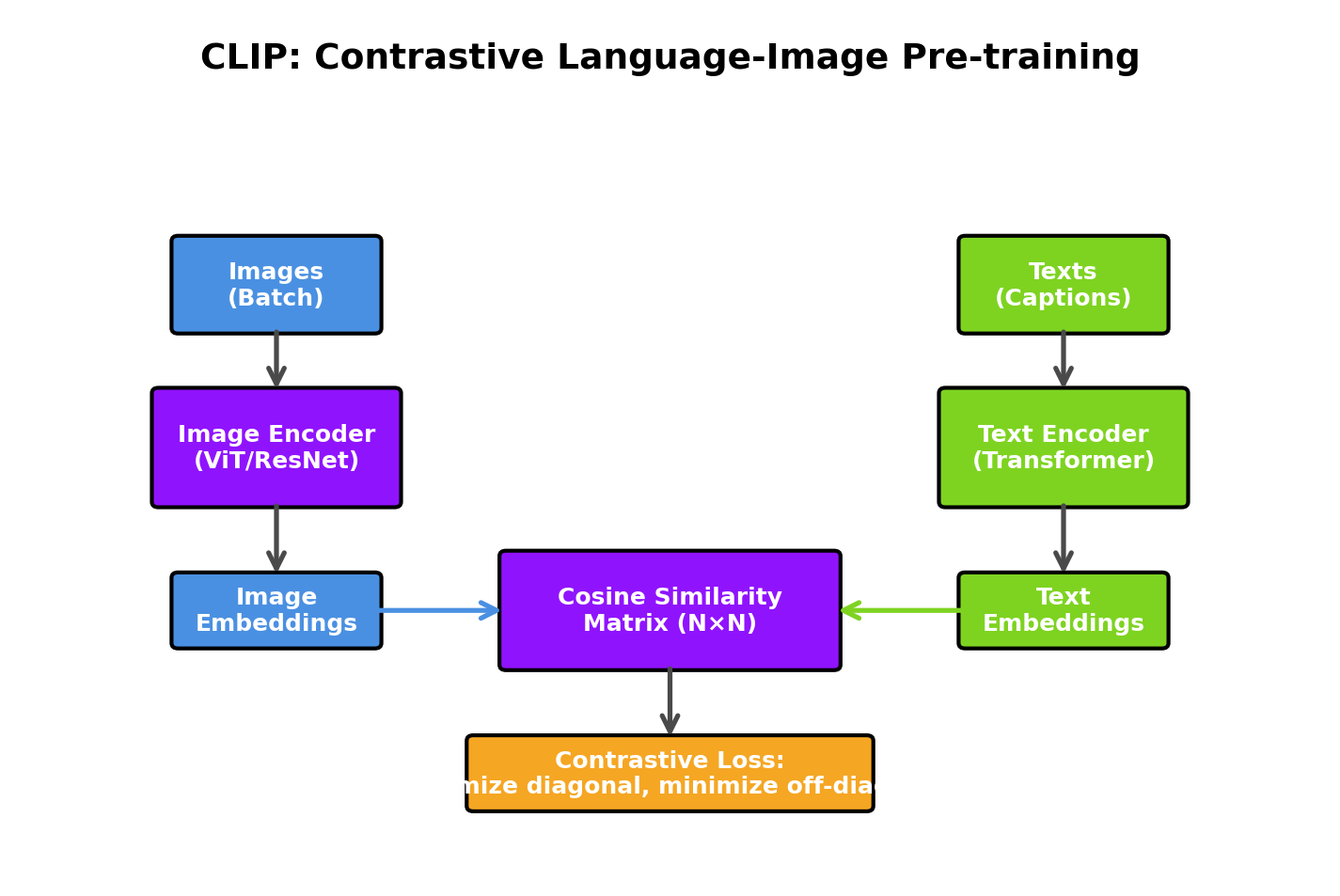

CLIP Architecture
css
┌─────────────────────┐
│ Image Encoder │
│ (ViT or ResNet) │
│ 224×224×3 │
│ ↓ │
│ [0.7, 0.3, ...] │ ← Image embedding (512-D)
└─────────────────────┘
┌─────────────────────┐
│ Text Encoder │
│ (Transformer) │
│ "a dog playing" │
│ ↓ │
│ [0.6, 0.4, ...] │ ← Text embedding (512-D)
└─────────────────────┘
Contrastive Loss: Pull matching pairs together
Image Encoder Options
Option One: ResNet (CNN-based)
python
import torch.nn as nn
from torchvision.models import resnet50
class CLIPImageEncoder(nn.Module):
def __init__(self, embed_dim=512):
super().__init__()
self.resnet = resnet50(pretrained=False)
# Replace final layer with projection to embed_dim
self.resnet.fc = nn.Linear(2048, embed_dim)
def forward(self, images):
# images: [batch, 3, 224, 224]
embeddings = self.resnet(images) # [batch, embed_dim]
return embeddings
Option 2: Vision Transformer (ViT)
python
from transformers import ViTModel
class CLIPImageEncoder(nn.Module):
def __init__(self, embed_dim=512):
super().__init__()
self.vit = ViTModel.from_pretrained("google/vit-base-patch16-224")
self.projection = nn.Linear(768, embed_dim) # ViT hidden size → embed_dim
def forward(self, images):
# images: [batch, 3, 224, 224]
outputs = self.vit(pixel_values=images)
# Take [CLS] token embedding
cls_embedding = outputs.last_hidden_state[:, 0, :] # [batch, 768]
embeddings = self.projection(cls_embedding) # [batch, embed_dim]
return embeddings
Text Encoder
python
from transformers import BertModel
class CLIPTextEncoder(nn.Module):
def __init__(self, embed_dim=512):
super().__init__()
self.bert = BertModel.from_pretrained("bert-base-uncased")
self.projection = nn.Linear(768, embed_dim)
def forward(self, input_ids, attention_mask):
# input_ids: [batch, seq_len]
outputs = self.bert(input_ids=input_ids, attention_mask=attention_mask)
# Take [CLS] token embedding
cls_embedding = outputs.last_hidden_state[:, 0, :] # [batch, 768]
embeddings = self.projection(cls_embedding) # [batch, embed_dim]
return embeddings
Complete CLIP Model
python
import torch
import torch.nn as nn
import torch.nn.functional as F
class CLIP(nn.Module):
def __init__(self, embed_dim=512, temperature=0.07):
super().__init__()
self.image_encoder = CLIPImageEncoder(embed_dim)
self.text_encoder = CLIPTextEncoder(embed_dim)
self.temperature = temperature
def forward(self, images, input_ids, attention_mask):
# Encode images and text
image_embeddings = self.image_encoder(images) # [batch, embed_dim]
text_embeddings = self.text_encoder(input_ids, attention_mask) # [batch, embed_dim]
# Normalize embeddings (important for contrastive learning)
image_embeddings = F.normalize(image_embeddings, dim=-1)
text_embeddings = F.normalize(text_embeddings, dim=-1)
# Compute similarity matrix
logits = torch.matmul(image_embeddings, text_embeddings.T) / self.temperature
return logits, image_embeddings, text_embeddings
def compute_loss(self, logits):
# Labels: diagonal elements are positive pairs
labels = torch.arange(len(logits), device=logits.device)
# Symmetric loss (image-to-text + text-to-image)
loss_i2t = F.cross_entropy(logits, labels)
loss_t2i = F.cross_entropy(logits.T, labels)
return (loss_i2t + loss_t2i) / 2
# Training loop
model = CLIP(embed_dim=512)
optimizer = torch.optim.AdamW(model.parameters(), lr=1e-4)
for epoch in range(10):
for images, input_ids, attention_mask in dataloader:
# Forward pass
logits, img_emb, txt_emb = model(images, input_ids, attention_mask)
# Compute loss
loss = model.compute_loss(logits)
# Backward pass
optimizer.zero_grad()
loss.backward()
optimizer.step()
print(f"Epoch {epoch}, Loss: {loss.item():.4f}")
CLIP Training Data
OpenAI's CLIP was trained on:
- 400 million (image, text) pairs
- Scraped from the internet (Alt-text from webpages)
- Filtered for quality and content safety
Example Pairs:
vbnet
Image: [Photo of golden retriever]
Text: "A golden retriever playing fetch in a park"
Image: [Sunset over mountains]
Text: "Beautiful sunset with orange sky over mountain range"
Image: [Person cooking]
Text: "Chef preparing pasta in a kitchen"

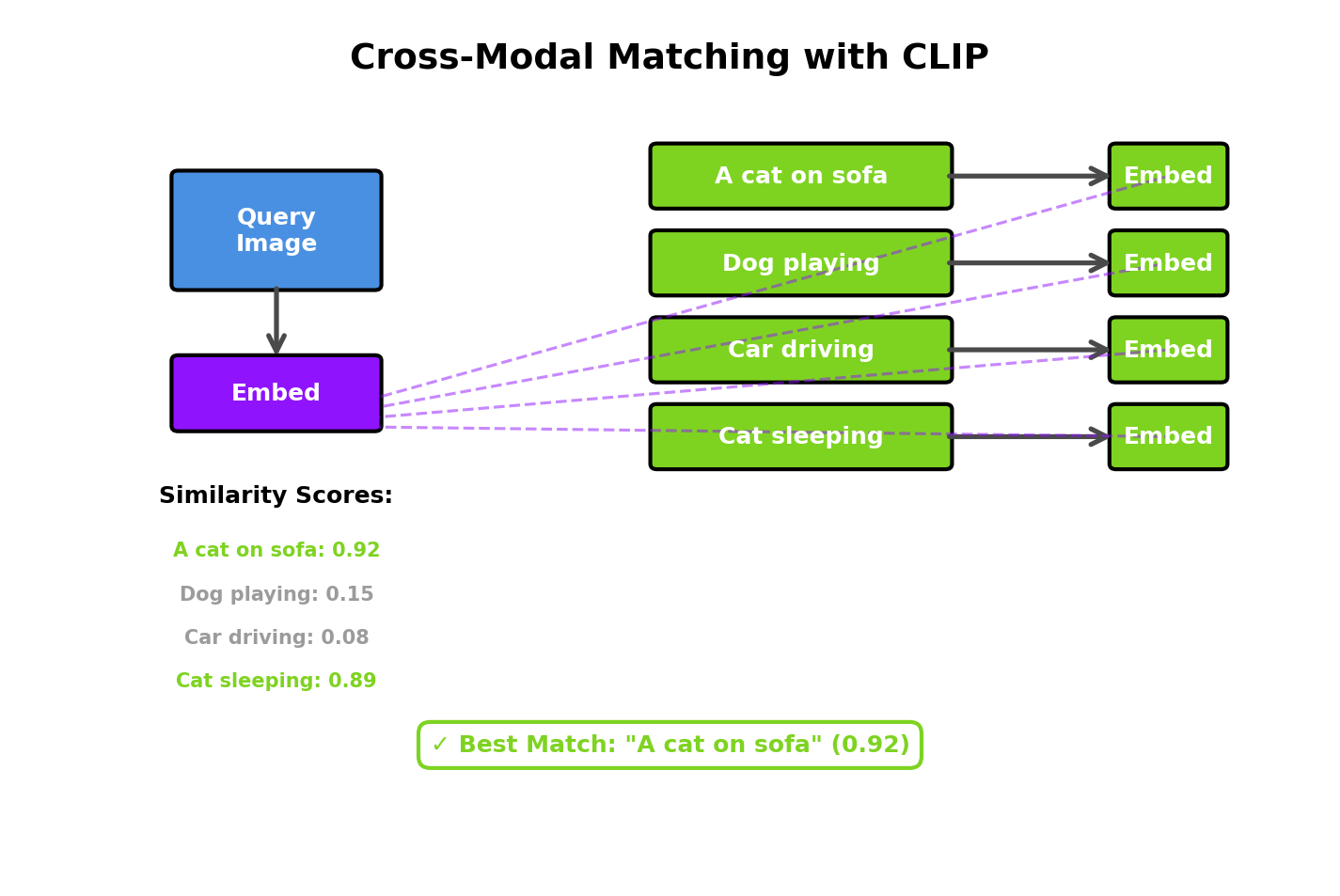

Zero-Shot Image Classification with CLIP
The Magic: Once trained, CLIP can classify images into categories it's never seen before!
How Zero-Shot Works
Traditional Supervised Learning:
- Train model on fixed categories (e.g., ImageNet 1000 classes)
- Model can ONLY predict those 1000 classes
- New category -> Must retrain entire model
CLIP Zero-Shot:
- Train on 400M diverse (image, text) pairs
- At test time, provide text descriptions of new categories
- Find which text description best matches the image
Example:
python
from transformers import CLIPProcessor, CLIPModel
from PIL import Image
# Load pre-trained CLIP
model = CLIPModel.from_pretrained("openai/clip-vit-base-patch32")
processor = CLIPProcessor.from_pretrained("openai/clip-vit-base-patch32")
# Load image
image = Image.open("mystery_animal.jpg")
# Define candidate categories (can be anything!)
texts = [
"a photo of a cat",
"a photo of a dog",
"a photo of a bird",
"a photo of a fish",
]
# Process inputs
inputs = processor(text=texts, images=image, return_tensors="pt", padding=True)
# Compute similarities
outputs = model(**inputs)
logits_per_image = outputs.logits_per_image # [1, 4] - image-text similarity scores
probs = logits_per_image.softmax(dim=1) # Convert to probabilities
# Get prediction
pred_idx = probs.argmax().item()
print(f"Prediction: {texts[pred_idx]}")
print(f"Confidence: {probs[0][pred_idx].item():.2%}")
Output:
makefile
Prediction: a photo of a dog
Confidence: 87.32%
Why This is Revolutionary
Before CLIP: To add a new category to an image classifier, you need:
- Thousands of labeled examples of that category
- Retraining the entire model (hours/days)
With CLIP: To add a new category:
- Write a text description (1 second)
- No retraining needed!
Applications:
- Content moderation (detect new types of inappropriate content)
- Product search (find items by description)
- Medical imaging (classify rare conditions without labeled data)
Text-to-Image Generation: Stable Diffusion + CLIP
Connection to Lesson 13: We learned diffusion models denoise random noise into images. But how do we condition the generation on text?
Answer: Use CLIP text embeddings to guide the diffusion process!

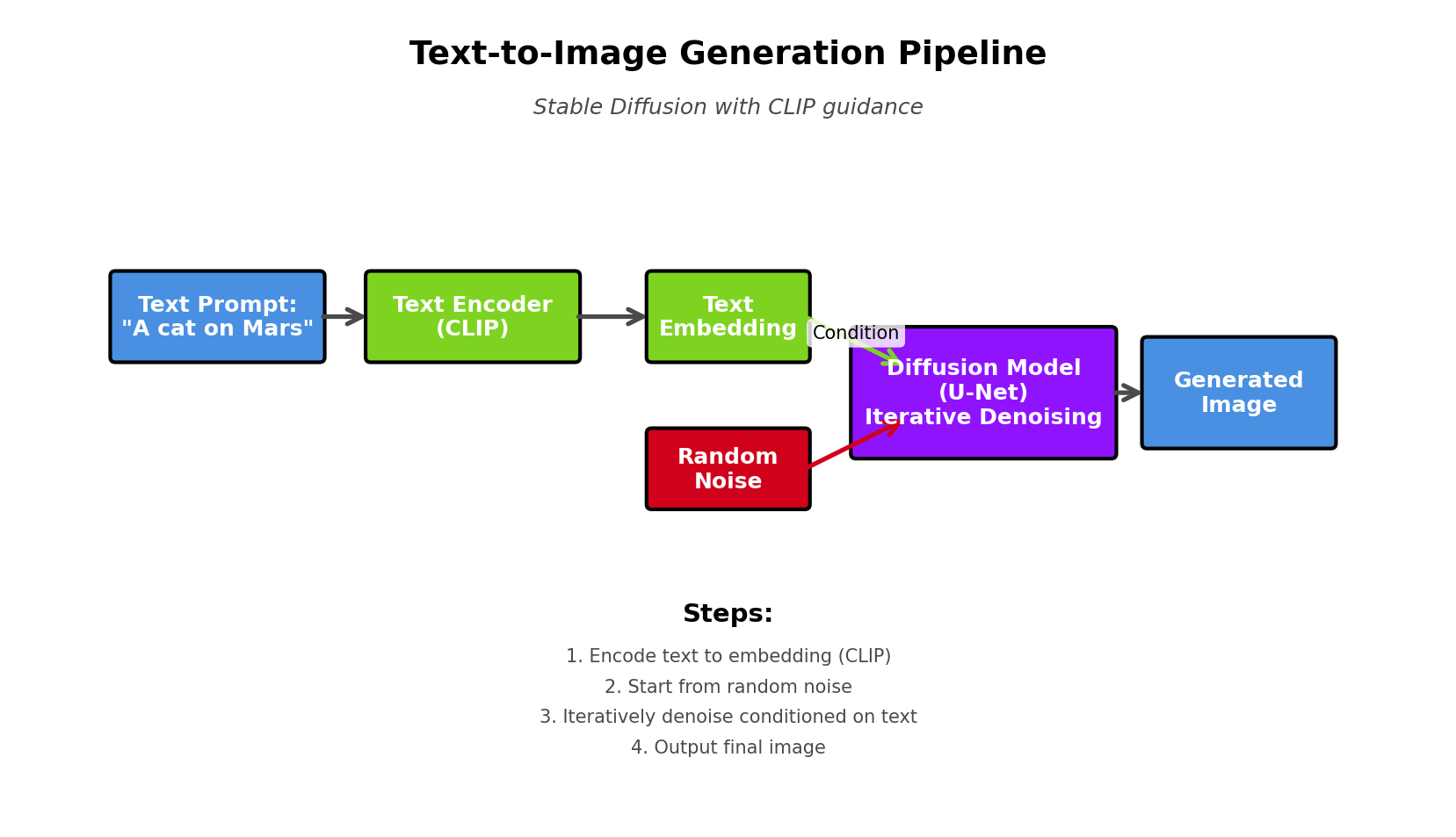

Latent Diffusion Model Architecture
less
Text Prompt: "A cat wearing a space suit"
↓
Text Encoder (CLIP)
↓
Text Embedding [512-D]
↓
┌───────────────────────────────┐
│ U-Net Denoiser │
│ (conditioned on text) │
│ │
│ Noise → ... → Image Latent │
└───────────────────────────────┘
↓
VAE Decoder
↓
Final Image (512×512×3)
CLIP-Guided Diffusion
Key Idea: At each denoising step, ensure the image is moving toward the text description.
Classifier-Free Guidance (CFG):
python
def diffusion_step_with_guidance(x_t, t, text_embedding, guidance_scale=7.5):
"""
x_t: Noisy image at timestep t
t: Current timestep
text_embedding: CLIP text embedding
guidance_scale: How much to emphasize text conditioning
"""
# Predict noise with text conditioning
noise_cond = unet(x_t, t, context=text_embedding)
# Predict noise without text conditioning (unconditional)
noise_uncond = unet(x_t, t, context=None)
# Classifier-free guidance: extrapolate toward text-conditioned prediction
noise_pred = noise_uncond + guidance_scale * (noise_cond - noise_uncond)
# Denoise
x_t_minus_1 = denoise(x_t, noise_pred, t)
return x_t_minus_1
Why CFG Works:
- Low guidance (e.g., 1.0): Image loosely matches text (more creative)
- High guidance (e.g., 15.0): Image closely matches text (more accurate)
- Typical value: 7.5 (good balance)
Stable Diffusion Code
python
from diffusers import StableDiffusionPipeline
import torch
# Load Stable Diffusion model
model_id = "stabilityai/stable-diffusion-2-1"
pipe = StableDiffusionPipeline.from_pretrained(model_id, torch_dtype=torch.float16)
pipe = pipe.to("cuda")
# Generate image from text
prompt = "A cat wearing a space suit, digital art"
image = pipe(
prompt=prompt,
height=512,
width=512,
num_inference_steps=50, # More steps = higher quality
guidance_scale=7.5, # Text adherence
).images[0]
image.save("cat_astronaut.png")
How Text Influences Generation:
- Text Encoder (CLIP): Converts prompt to embedding
- U-Net Denoiser: Takes noisy image + text embedding -> Predicts noise to remove
- Cross-Attention: U-Net attends to text embedding at each layer (connects vision + language)
- Guidance: Amplifies text-conditioned signal during sampling
Image Captioning: Encoder-Decoder Architecture
Task: Given an image, generate a descriptive text caption.
Example:
less
Input Image: [Photo of children playing soccer in a park]
Output Caption: "A group of children playing soccer in a park on a sunny day"
Architecture
scss
┌─────────────────────┐
│ Image Encoder │ ← CNN or ViT (pre-trained)
│ (ResNet/ViT) │
│ ↓ │
│ Visual Features │ ← [batch, 196, 2048] (spatial features)
└─────────────────────┘
↓
┌─────────────────────┐
│ Decoder │ ← Transformer decoder with cross-attention
│ (Transformer) │
│ │
│ Cross-Attention: │ ← Attend to visual features
│ Query: Word │
│ Key/Value: Image │
│ ↓ │
│ "A" → "group" → │ ← Autoregressive generation
│ "of" → "children" │
└─────────────────────┘
Encoder: Extract Visual Features
python
import torch.nn as nn
from torchvision.models import resnet50
class ImageEncoder(nn.Module):
def __init__(self):
super().__init__()
# Use ResNet without final classification layer
resnet = resnet50(pretrained=True)
modules = list(resnet.children())[:-2] # Remove avgpool and fc
self.resnet = nn.Sequential(*modules)
# Output: [batch, 2048, 7, 7] spatial features
def forward(self, images):
# images: [batch, 3, 224, 224]
features = self.resnet(images) # [batch, 2048, 7, 7]
# Reshape to sequence: [batch, 49, 2048]
batch_size, channels, h, w = features.size()
features = features.view(batch_size, channels, h * w).permute(0, 2, 1)
return features # [batch, 49, 2048]
Decoder: Transformer with Cross-Attention
python
class CaptioningDecoder(nn.Module):
def __init__(self, vocab_size, embed_dim=512, num_heads=8, num_layers=6):
super().__init__()
self.embedding = nn.Embedding(vocab_size, embed_dim)
self.pos_encoding = nn.Parameter(torch.randn(1, 100, embed_dim)) # Max length 100
# Transformer decoder layer
decoder_layer = nn.TransformerDecoderLayer(
d_model=embed_dim,
nhead=num_heads,
dim_feedforward=2048,
)
self.transformer_decoder = nn.TransformerDecoder(decoder_layer, num_layers=num_layers)
# Output projection
self.fc_out = nn.Linear(embed_dim, vocab_size)
def forward(self, tokens, visual_features, tgt_mask=None):
# tokens: [batch, seq_len] - caption tokens
# visual_features: [batch, 49, 2048] - image features
# Embed tokens
embeddings = self.embedding(tokens) + self.pos_encoding[:, :tokens.size(1), :]
# Transformer decoder (with cross-attention to visual features)
output = self.transformer_decoder(
tgt=embeddings.permute(1, 0, 2), # [seq_len, batch, embed_dim]
memory=visual_features.permute(1, 0, 2), # [49, batch, 2048]
tgt_mask=tgt_mask, # Causal mask for autoregressive generation
)
# Project to vocabulary
logits = self.fc_out(output.permute(1, 0, 2)) # [batch, seq_len, vocab_size]
return logits
Complete Captioning Model
python
class ImageCaptioningModel(nn.Module):
def __init__(self, vocab_size):
super().__init__()
self.encoder = ImageEncoder()
self.decoder = CaptioningDecoder(vocab_size)
def forward(self, images, captions):
# Encode image
visual_features = self.encoder(images) # [batch, 49, 2048]
# Decode caption (teacher forcing during training)
logits = self.decoder(captions, visual_features)
return logits
def generate_caption(self, image, tokenizer, max_length=50):
# Encode image
visual_features = self.encoder(image.unsqueeze(0))
# Start with <START> token
caption = [tokenizer.start_token_id]
# Autoregressive generation
for _ in range(max_length):
tokens = torch.tensor([caption], device=image.device)
logits = self.decoder(tokens, visual_features)
# Get next token
next_token = logits[0, -1, :].argmax().item()
caption.append(next_token)
# Stop at <END> token
if next_token == tokenizer.end_token_id:
break
# Decode to text
return tokenizer.decode(caption)
# Training loop
model = ImageCaptioningModel(vocab_size=10000)
optimizer = torch.optim.Adam(model.parameters(), lr=1e-4)
for images, captions in dataloader:
# Forward pass
logits = model(images, captions[:, :-1]) # Input: all but last token
# Compute loss (predict next token)
loss = F.cross_entropy(
logits.reshape(-1, vocab_size),
captions[:, 1:].reshape(-1) # Target: all but first token
)
# Backward pass
optimizer.zero_grad()
loss.backward()
optimizer.step()
Visual Question Answering (VQA)
Task: Given an image and a question, generate an answer.
Example:
vbnet
Image: [Photo of a kitchen with a red kettle on the stove]
Question: "What color is the kettle?"
Answer: "Red"
VQA Architecture
css
Image → Visual Encoder → Visual Features [2048-D]
↓
Question → Text Encoder → Question Features [512-D]
↓
┌─────────────────┐
│ Fusion Module │ ← Combine vision + language
│ (Multi-modal │
│ Attention) │
└─────────────────┘
↓
Answer Classifier [3129 classes]
Fusion with Co-Attention
Key Idea: Let the model attend to relevant image regions based on the question.
Example:
- Question: "What color is the kettle?" -> Attend to kettle region
- Question: "How many people are visible?" -> Attend to person regions
python
class CoAttentionVQA(nn.Module):
def __init__(self, num_answers=3129):
super().__init__()
self.visual_encoder = ImageEncoder() # ResNet
self.text_encoder = nn.LSTM(input_size=300, hidden_size=512, num_layers=2)
# Co-attention layers
self.visual_attention = nn.Linear(2048, 512)
self.text_attention = nn.Linear(512, 512)
# Answer classifier
self.classifier = nn.Linear(512 + 2048, num_answers)
def forward(self, images, questions):
# Encode image: [batch, 49, 2048]
visual_features = self.visual_encoder(images)
# Encode question: [batch, 512]
_, (question_features, _) = self.text_encoder(questions)
question_features = question_features[-1] # Last layer
# Compute attention weights over image regions
query = self.text_attention(question_features).unsqueeze(1) # [batch, 1, 512]
keys = self.visual_attention(visual_features) # [batch, 49, 512]
# Attention scores
scores = torch.bmm(query, keys.permute(0, 2, 1)) # [batch, 1, 49]
attention_weights = F.softmax(scores, dim=-1)
# Weighted sum of visual features
attended_visual = torch.bmm(attention_weights, visual_features).squeeze(1) # [batch, 2048]
# Fuse visual + question features
fused = torch.cat([attended_visual, question_features], dim=-1) # [batch, 2560]
# Classify answer
logits = self.classifier(fused) # [batch, 3129]
return logits
Multi-Modal RLHF: Extending to Vision
From Lesson 16: RLHF aligns language models with human preferences.
Extension: Use RLHF to align text-to-image models with human aesthetic preferences!
Vision-RLHF Pipeline
Stage 1: Train base diffusion model (Stable Diffusion)
Stage 2: Train aesthetic reward model
- Collect preference data: "Which image is better for this prompt?"
- Train reward model:
r = aesthetic_model(image, prompt)
Stage 3: Fine-tune diffusion model with RLHF
- Generate images from prompts
- Score with reward model
- Use RL (PPO or DPO) to optimize for higher rewards
Example:
python
# Reward model
class AestheticRewardModel(nn.Module):
def __init__(self):
super().__init__()
self.clip = CLIPModel.from_pretrained("openai/clip-vit-large-patch14")
self.mlp = nn.Sequential(
nn.Linear(768, 256),
nn.ReLU(),
nn.Linear(256, 1) # Scalar reward
)
def forward(self, images, prompts):
# Get CLIP image-text similarity
clip_score = self.clip(images, prompts).logits_per_image
# MLP predicts aesthetic score
features = self.clip.get_image_features(images)
aesthetic_score = self.mlp(features)
return aesthetic_score
# RLHF training loop (simplified)
for prompt_batch in prompts:
# Generate images with current diffusion policy
images = diffusion_model.generate(prompt_batch)
# Get rewards
rewards = aesthetic_model(images, prompt_batch)
# PPO update
ppo_trainer.step(prompts=prompt_batch, images=images, rewards=rewards)
Results: Models learn to generate more aesthetically pleasing, higher-quality images.
Applications
| Application | Input | Output | Example |
|---|---|---|---|
| Image Search | Image | Relevant text queries | Upload photo -> Find similar products |
| Visual QA | Image + Question | Answer | "How many people?" -> "3" |
| Image Captioning | Image | Description | Photo -> "A dog playing in a park" |
| Text-to-Image | Text | Image | "Sunset over ocean" -> Generated image |
| Image Editing | Image + Text | Edited image | "Make the sky blue" -> Modified image |
| Document Understanding | Document image | Extracted info | Invoice -> Total amount |
| Medical Imaging | X-ray + Query | Diagnosis | "Is there a fracture?" -> "Yes, left tibia" |
Advantages and Limitations
Advantages
| Advantage | Description |
|---|---|
| ✅ Zero-Shot Transfer | CLIP can classify new categories without training |
| ✅ Unified Representation | One model for multiple vision-language tasks |
| ✅ Rich Semantics | Learns high-level concepts, not just pixels |
| ✅ Scalability | Trained on web-scale data (millions of examples) |
| ✅ Interpretability | Can visualize attention to understand decisions |
Limitations
| Limitation | Description | Mitigation |
|---|---|---|
| ⚠️ Compositionality | Struggles with complex relationships | Fine-tune on compositional datasets |
| ⚠️ Bias | Inherits biases from web data | Careful data curation, fairness audits |
| ⚠️ Hallucination | May generate false captions | Reward models for factuality |
| ⚠️ Compute Cost | Large models require GPUs | Model distillation, efficient architectures |
| ⚠️ Fine-Grained Details | Misses small objects or subtle differences | Higher-resolution encoders, attention mechanisms |
Connections to Previous Lessons
| Lesson | Connection to Multi-Modal AI |
|---|---|
| Lesson 13 (Diffusion) | Stable Diffusion uses CLIP text embeddings to condition image generation |
| Lesson 14 (Transformers) | Image captioning decoder uses Transformer architecture |
| Lesson 15 (LLMs) | Text encoders in CLIP are based on BERT/GPT-style transformers |
| Lesson 16 (RLHF) | Multi-modal RLHF aligns text-to-image models with human preferences |
Key Takeaways
-
Joint Embedding Space: Multi-modal AI maps images and text to the same vector space using contrastive learning.
-
CLIP Architecture: Dual encoders (image + text) trained with InfoNCE loss on 400M pairs.
-
Zero-Shot Classification: CLIP can classify images into new categories by comparing with text descriptions.
-
Text-to-Image: Stable Diffusion uses CLIP text embeddings to guide denoising diffusion.
-
Image Captioning: Encoder-decoder with cross-attention generates descriptions from images.
-
Visual QA: Fusion modules (co-attention) combine visual and textual information for question answering.
-
Multi-Modal RLHF: Extends RLHF to vision domains for aesthetic and quality alignment.
-
Cross-Attention: Key mechanism that connects visual features with text queries.
-
Applications: Image search, VQA, captioning, text-to-image, document understanding.
-
Challenges: Compositionality, bias, hallucination, compute cost.
Looking Ahead
In Lesson 18 (Future of AI), we'll explore:
- AI Agents: Systems that use tool calling and multi-modal understanding to solve complex tasks
- Safety and Ethics: Ensuring multi-modal AI is fair, robust, and aligned
- Integration: Combining RL, GenAI, and multi-modal AI into unified systems
Preview: Imagine an AI agent that can:
- Read a research paper (text)
- Analyze figures and charts (vision)
- Search for related work (tool use)
- Generate a summary with visualizations (multi-modal generation)
This is the future we're building toward!
Summary
Multi-modal AI bridges vision and language through joint embedding spaces learned with contrastive learning.
CLIP (Contrastive Language-Image Pre-training):
- Dual encoders (image ViT/ResNet + text Transformer)
- Trained on 400M (image, text) pairs
- Enables zero-shot classification and image-text retrieval
Applications:
- Text-to-image (Stable Diffusion + CLIP)
- Image captioning (Encoder-decoder with cross-attention)
- Visual QA (Co-attention fusion)
- Multi-modal RLHF (aligning text-to-image models)
Key Techniques:
- Contrastive loss (InfoNCE)
- Cross-attention (connect vision + language)
- Classifier-free guidance (text-conditioned generation)
Impact: Powers Google Lens, DALL-E, GPT-4 Vision, and countless other multi-modal applications.
Next: Lesson 18 - The Future of AI ->
