Lesson 6 of 14

Concept 6: CSS Grid & Modern CSS

CSS Grid & Modern CSS

:dart: Learning Objectives

By the end of this lesson, you will be able to:

Create complex layouts using CSS Grid
Understand the difference between Grid and Flexbox
Use CSS custom properties (variables) for better code organization
Build responsive layouts with media queries
Apply modern CSS features like clamp() and logical properties
Debug Grid layouts using browser DevTools

Welcome to the world of advanced CSS layouts! Today we'll explore CSS Grid, the most powerful layout system in CSS. We'll also discover modern CSS features that make our code cleaner and easier to maintain.

:emoji: What is CSS Grid?

:information_source: CSS Grid is a two-dimensional layout system that lets you create complex layouts with rows and columns. Unlike Flexbox (which works in one direction), Grid gives you control over both horizontal and vertical positioning.

:emoji: Grid vs Flexbox: When to Use Which?

Use Flexbox for: One-dimensional layouts like navigation bars, button groups, or centering single items
Use Grid for: Two-dimensional layouts like page structures, card galleries, or complex dashboard components
Use both together: They work great as a team! Use Grid for your overall layout and Flexbox for organizing content inside Grid items

:bulb: Tip Think of Flexbox as arranging items in a line (horizontal or vertical), while Grid arranges items in rows AND columns at the same time!

:emoji:️ Grid Fundamentals

Basic Grid Terminology

css

.grid-container {
  display: grid;
  grid-template-columns: 1fr 2fr 1fr; /* 3 columns */
  grid-template-rows: auto 1fr auto;  /* 3 rows */
  gap: 20px; /* Space between grid items */
}

Key Terms to Remember:

Grid Container: The parent element that holds everything (needs display: grid)
Grid Items: The direct children that sit inside the container
Grid Lines: The invisible lines that divide your grid (like graph paper)
Grid Tracks: The space between two lines (these become your rows or columns)
Grid Cell: Where a row and column meet (like a spreadsheet cell)
Grid Area: A rectangle that covers multiple cells

The Magic `fr` Unit

The fr (fraction) unit is Grid's special way of dividing space:

css

.three-column-layout {
  display: grid;
  grid-template-columns: 1fr 2fr 1fr;
  /* Column 1: 25% | Column 2: 50% | Column 3: 25% */
}

:memo: Note The fr unit automatically calculates sizes for you! In the example above:

1fr + 2fr + 1fr = 4 total fractions

First column gets 1/4 of the space

Middle column gets 2/4 (or 1/2) of the space

Last column gets 1/4 of the space

:rocket: Building Your First Grid Layout

Let's create a classic webpage layout step by step:

html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Grid Layout Example</title>
    <style>
        * {
            margin: 0;
            padding: 0;
            box-sizing: border-box;
        }

        .page-layout {
            display: grid;
            grid-template-areas:
                "header header header"
                "sidebar main aside"
                "footer footer footer";
            grid-template-columns: 200px 1fr 200px;
            grid-template-rows: auto 1fr auto;
            min-height: 100vh;
            gap: 20px;
            padding: 20px;
        }

        .header {
            grid-area: header;
            background: #3498db;
            color: white;
            padding: 20px;
            text-align: center;
        }

        .sidebar {
            grid-area: sidebar;
            background: #e74c3c;
            color: white;
            padding: 20px;
        }

        .main {
            grid-area: main;
            background: #2ecc71;
            color: white;
            padding: 20px;
        }

        .aside {
            grid-area: aside;
            background: #f39c12;
            color: white;
            padding: 20px;
        }

        .footer {
            grid-area: footer;
            background: #34495e;
            color: white;
            padding: 20px;
            text-align: center;
        }
    </style>
</head>
<body>
    <div class="page-layout">
        <header class="header">
            <h1>Website Header</h1>
        </header>
        <nav class="sidebar">
            <h2>Navigation</h2>
            <ul>
                <li>Home</li>
                <li>About</li>
                <li>Services</li>
                <li>Contact</li>
            </ul>
        </nav>
        <main class="main">
            <h2>Main Content</h2>
            <p>This is where your main content goes. The grid makes it easy to create professional layouts!</p>
        </main>
        <aside class="aside">
            <h2>Sidebar</h2>
            <p>Additional information or ads can go here.</p>
        </aside>
        <footer class="footer">
            <p>&copy; 2024 Your Website. All rights reserved.</p>
        </footer>
    </div>
</body>
</html>

:art: CSS Custom Properties (Variables)

Modern CSS includes custom properties (also called CSS variables) that make your code much easier to maintain and update:

css

:root {
  /* Define variables at the root level */
  --primary-color: #3498db;
  --secondary-color: #e74c3c;
  --accent-color: #f39c12;
  --text-color: #2c3e50;
  --background-color: #ecf0f1;

  --spacing-small: 10px;
  --spacing-medium: 20px;
  --spacing-large: 40px;

  --border-radius: 8px;
  --box-shadow: 0 2px 4px rgba(0,0,0,0.1);
}

.card {
  background: var(--background-color);
  color: var(--text-color);
  padding: var(--spacing-medium);
  border-radius: var(--border-radius);
  box-shadow: var(--box-shadow);
  border-left: 4px solid var(--primary-color);
}

.button {
  background: var(--primary-color);
  color: white;
  padding: var(--spacing-small) var(--spacing-medium);
  border: none;
  border-radius: var(--border-radius);
  cursor: pointer;
}

.button:hover {
  background: var(--secondary-color);
}

:bulb: Why Use CSS Variables?

Maintainability: Change a value in one place, and it updates everywhere automatically
Theming: Switch between light and dark themes with just a few variable changes
Consistency: Keep your spacing, colors, and sizes the same across your entire site
Dynamic: JavaScript can change these variables to create interactive effects

:bulb: Tip Name your variables clearly! Use --primary-color instead of --blue so you can change the color later without confusion.

:wrench: Advanced Grid Techniques

Responsive Grid with Auto-Fit

css

.card-grid {
  display: grid;
  grid-template-columns: repeat(auto-fit, minmax(300px, 1fr));
  gap: var(--spacing-medium);
  padding: var(--spacing-medium);
}

This powerful one-liner creates a responsive grid that:

Automatically creates columns based on available space
Makes each column at least 300px wide
Stretches columns to fill any extra space
No media queries needed!

Grid Line Positioning

css

.featured-item {
  grid-column: 1 / 3; /* Span from line 1 to line 3 */
  grid-row: 1 / 3;    /* Span from row 1 to row 3 */
}

/* Or use span notation */
.wide-item {
  grid-column: span 2; /* Span across 2 columns */
}

Complex Grid Layouts

css

.magazine-layout {
  display: grid;
  grid-template-columns: repeat(6, 1fr);
  grid-template-rows: repeat(4, 200px);
  gap: 15px;
}

.article-1 { grid-area: 1 / 1 / 3 / 4; } /* Large feature */
.article-2 { grid-area: 1 / 4 / 2 / 7; } /* Top right */
.article-3 { grid-area: 2 / 4 / 3 / 6; } /* Medium */
.article-4 { grid-area: 2 / 6 / 3 / 7; } /* Small */
.article-5 { grid-area: 3 / 1 / 5 / 4; } /* Bottom left */
.article-6 { grid-area: 3 / 4 / 5 / 7; } /* Bottom right */

:star2: Modern CSS Features

CSS Logical Properties

CSS now has smarter properties that adapt to different languages and writing directions:

css

.card {
  margin-inline-start: 20px; /* Left in LTR, right in RTL */
  margin-inline-end: 20px;   /* Right in LTR, left in RTL */
  margin-block-start: 10px;  /* Top */
  margin-block-end: 10px;    /* Bottom */
}

/* Shorthand */
.card {
  margin-inline: 20px; /* Horizontal margins */
  margin-block: 10px;  /* Vertical margins */
}

:memo: Note Logical properties are especially helpful for international websites that support languages written right-to-left (like Arabic or Hebrew).

CSS Clamp for Responsive Typography

The clamp() function creates text that automatically resizes:

css

.responsive-heading {
  font-size: clamp(1.5rem, 4vw, 3rem);
  /* Minimum: 1.5rem, Preferred: 4vw, Maximum: 3rem */
}

This means your heading will:

Never be smaller than 1.5rem
Try to be 4% of the viewport width
Never be larger than 3rem

Modern Color Functions

css

:root {
  --primary: hsl(210, 100%, 50%);
  --primary-light: hsl(210, 100%, 70%);
  --primary-dark: hsl(210, 100%, 30%);

  /* Or use the newer color functions */
  --accent: color(display-p3 0.8 0.2 0.4);
}

:computer: Practical Activity: Grid Layout Challenge

Let's put everything together! Create a responsive photo gallery using CSS Grid:

html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Photo Gallery</title>
    <style>
        :root {
            --grid-gap: 15px;
            --border-radius: 12px;
            --shadow: 0 4px 6px rgba(0, 0, 0, 0.1);
            --transition: transform 0.3s ease, box-shadow 0.3s ease;
        }

        * {
            margin: 0;
            padding: 0;
            box-sizing: border-box;
        }

        body {
            font-family: 'Arial', sans-serif;
            background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
            min-height: 100vh;
            padding: 40px 20px;
        }

        .gallery-container {
            max-width: 1200px;
            margin: 0 auto;
        }

        .gallery-title {
            text-align: center;
            color: white;
            font-size: clamp(2rem, 5vw, 3.5rem);
            margin-bottom: 40px;
            text-shadow: 2px 2px 4px rgba(0,0,0,0.3);
        }

        .photo-grid {
            display: grid;
            grid-template-columns: repeat(auto-fit, minmax(250px, 1fr));
            gap: var(--grid-gap);
        }

        .photo-item {
            background: white;
            border-radius: var(--border-radius);
            overflow: hidden;
            box-shadow: var(--shadow);
            transition: var(--transition);
            cursor: pointer;
        }

        .photo-item:hover {
            transform: translateY(-10px);
            box-shadow: 0 8px 25px rgba(0, 0, 0, 0.15);
        }

        .photo-item:nth-child(1) {
            grid-row: span 2;
        }

        .photo-item:nth-child(4) {
            grid-column: span 2;
        }

        .photo-item:nth-child(7) {
            grid-row: span 2;
        }

        .photo-img {
            width: 100%;
            height: 100%;
            object-fit: cover;
            display: block;
            min-height: 200px;
        }

        .photo-caption {
            padding: 15px;
            text-align: center;
            font-weight: bold;
            color: #333;
        }

        @media (max-width: 768px) {
            .photo-item:nth-child(n) {
                grid-column: span 1 !important;
                grid-row: span 1 !important;
            }
        }
    </style>
</head>
<body>
    <div class="gallery-container">
        <h1 class="gallery-title">Modern Photo Gallery</h1>
        <div class="photo-grid">
            <div class="photo-item">
                <img src="https://picsum.photos/400/600?random=1" alt="Photo 1" class="photo-img">
                <div class="photo-caption">Mountain View</div>
            </div>
            <div class="photo-item">
                <img src="https://picsum.photos/400/400?random=2" alt="Photo 2" class="photo-img">
                <div class="photo-caption">City Life</div>
            </div>
            <div class="photo-item">
                <img src="https://picsum.photos/400/400?random=3" alt="Photo 3" class="photo-img">
                <div class="photo-caption">Ocean Waves</div>
            </div>
            <div class="photo-item">
                <img src="https://picsum.photos/800/400?random=4" alt="Photo 4" class="photo-img">
                <div class="photo-caption">Desert Landscape</div>
            </div>
            <div class="photo-item">
                <img src="https://picsum.photos/400/400?random=5" alt="Photo 5" class="photo-img">
                <div class="photo-caption">Forest Path</div>
            </div>
            <div class="photo-item">
                <img src="https://picsum.photos/400/400?random=6" alt="Photo 6" class="photo-img">
                <div class="photo-caption">Urban Art</div>
            </div>
            <div class="photo-item">
                <img src="https://picsum.photos/400/600?random=7" alt="Photo 7" class="photo-img">
                <div class="photo-caption">Sunset Sky</div>
            </div>
            <div class="photo-item">
                <img src="https://picsum.photos/400/400?random=8" alt="Photo 8" class="photo-img">
                <div class="photo-caption">Wild Flowers</div>
            </div>
        </div>
    </div>
</body>
</html>

:dart: Your Challenge Tasks

Task One: Master Grid Basics

Create a simple 3x3 grid layout with:

Header spanning all 3 columns
Content in the center 3 cells
Footer spanning all 3 columns
Use CSS variables for colors and spacing

Task 2: Responsive Card Grid

Build a card layout that:

Shows 4 cards per row on large screens
Shows 2 cards per row on tablets
Shows 1 card per row on phones
Uses auto-fit and minmax() (no media queries!)

Task 3: Complex Magazine Layout

Create a magazine-style layout where:

Feature article takes up a 2x2 grid space
4 smaller articles fill the remaining space
All articles have hover effects
Layout adapts to mobile screens

:bug: Debugging CSS Grid

Common Grid Issues and Solutions

Items not positioning correctly

css

/* Problem: Forgot to set display: grid */
.container {
  grid-template-columns: 1fr 1fr 1fr; /* This won't work! */
}

/* Solution: Always set display first */
.container {
  display: grid;
  grid-template-columns: 1fr 1fr 1fr;
}

Grid items overflowing

css

/* Problem: Content too wide for grid */
.grid-item {
  width: 500px; /* Fixed width might overflow */
}

/* Solution: Use min-width and max-width */
.grid-item {
  min-width: 0; /* Allow shrinking */
  max-width: 100%; /* Prevent overflow */
}

Grid DevTools Tips

Your browser has amazing tools for debugging Grid:

Right-click on any grid container -> Inspect
Look for the small "grid" badge next to the element
Click it to see your grid lines appear on the page
Use the Layout panel to experiment with different values

:bulb: Tip The Grid inspector shows line numbers, making it easy to see exactly where your items should go!

:white_check_mark: Best Practices

One. Plan Your Grid First

Sketch your layout on paper first
Count how many rows and columns you need
Mark which items need to span multiple cells

2. Use Semantic Grid Areas

Using named areas makes your code easier to understand:

css

grid-template-areas:
  "header  header  header"
  "nav     main    aside"
  "footer  footer  footer";

3. Combine Grid with Flexbox

They're best friends! Use Grid for layout, Flexbox for content:

css

.grid-item {
  display: flex;
  align-items: center;
  justify-content: center;
}

4. Mobile-First Responsive Design

Start with mobile, then add complexity:

css

/* Mobile first */
.grid-container {
  display: grid;
  grid-template-columns: 1fr;
}

/* Tablet and up */
@media (min-width: 768px) {
  .grid-container {
    grid-template-columns: 200px 1fr;
  }
}

:iphone: Making Modern Layouts Responsive

What is Responsive Web Design?

:information_source: Responsive Web Design means creating web pages that look great and work well on all devices - from tiny phones to giant desktop monitors.

Your web page should automatically adjust to fit any screen size.

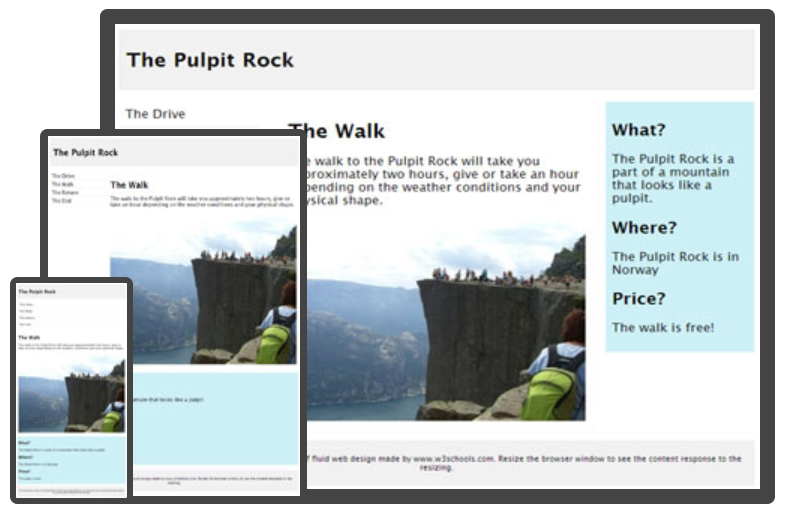

Example of Responsive Web Page on phone, tablet, and desktop

We use HTML and CSS to make content adapt by:

Resizing elements
Hiding or showing different content
Rearranging layouts
Adjusting font sizes

:emoji:️ The Viewport

:information_source: Viewport is the visible area of a web page on your device's screen.

Key facts about viewports:

Phone viewports are much smaller than desktop viewports
We control the viewport using a special <meta> tag
This tag tells browsers how to display your page properly

The Essential Viewport Meta Tag

Every responsive web page needs this line in the <head> section:

html

<meta name="viewport" content="width=device-width, initial-scale=1.0">

Let's break down what this does:

Attribute	What it Does
`name="viewport"`	Tells the browser this tag controls the viewport
`width=device-width`	Makes the page width match the device's screen width
`initial-scale=1.0`	Sets the starting zoom level (1.0 = no zoom)

:warning: Warning Without this viewport meta tag, mobile browsers will try to show your page as if it's on a desktop, making everything tiny!

Example

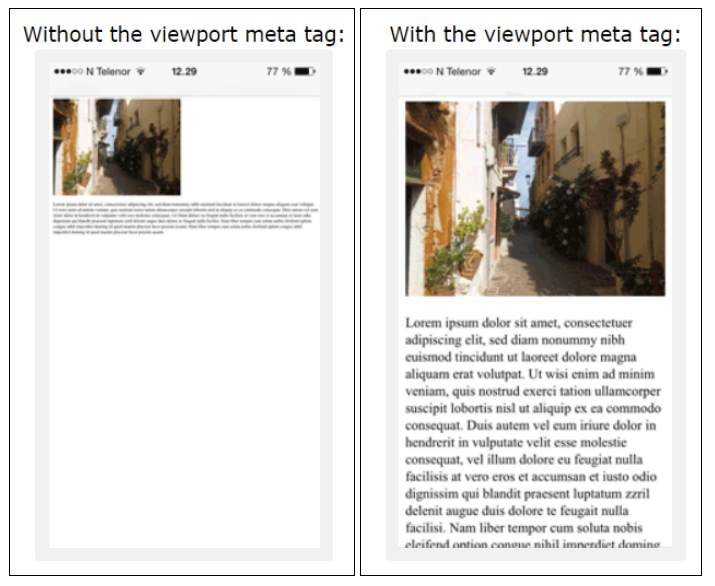

An example of a web page without the viewport meta tag, and the same web page with the viewport meta tag:

Example of the Same Web Page Without and With the Viewport Meta Tag

:art: Media Queries

Media queries are CSS's superpower for responsive design! They let you apply different styles based on the device or screen size.

Key points:

Media queries use the @media rule
They check conditions like screen width
You can have different styles for phones, tablets, and desktops

What Media Queries Can Check

Media queries are like asking questions about the device:

Viewport width and height: How big is the browser window?
Device width and height: How big is the actual screen?
Orientation: Is the device held sideways (landscape) or upright (portrait)?
Resolution: How sharp is the screen?

CSS Syntax for Media Query

css

@media mediatype and (mediafeature and|or mediafeature) {
CSS-Code;
}

Media Types

Common media types you'll use:

Media Type	When to Use It
`all`	Works for all devices (most common)
`screen`	For devices with screens (computers, phones, tablets)
`print`	For when someone prints your page
`speech`	For screen readers that speak content aloud

:memo: Note Most of the time, you'll use screen for regular web development!

Media Features

The most important media features for responsive design:

Media Feature	What It Checks
`width`	The exact viewport width
`min-width`	Is the viewport at least this wide?
`max-width`	Is the viewport no wider than this?

:bulb: Tip Use min-width for mobile-first design and max-width for desktop-first design!

For more media features, visit W3Schools Media Query Reference

Conditional Rules

Conditional Rule	How It Works
`and`	Both conditions must be true
`or` (using comma)	At least one condition must be true

Media Query Example

Let's see media queries in action!

Example: Changing Colors Based on Screen Size

css

body {
  background-color: lightblue;  /* Default for larger screens */
}

@media screen and (max-width: 400px) {
  body {
    background-color: pink;  /* Only applies when screen is 400px or smaller */
  }
}

How It Works:

Larger screens (401px+): Shows light blue background
Small screens (400px or less): Shows pink background

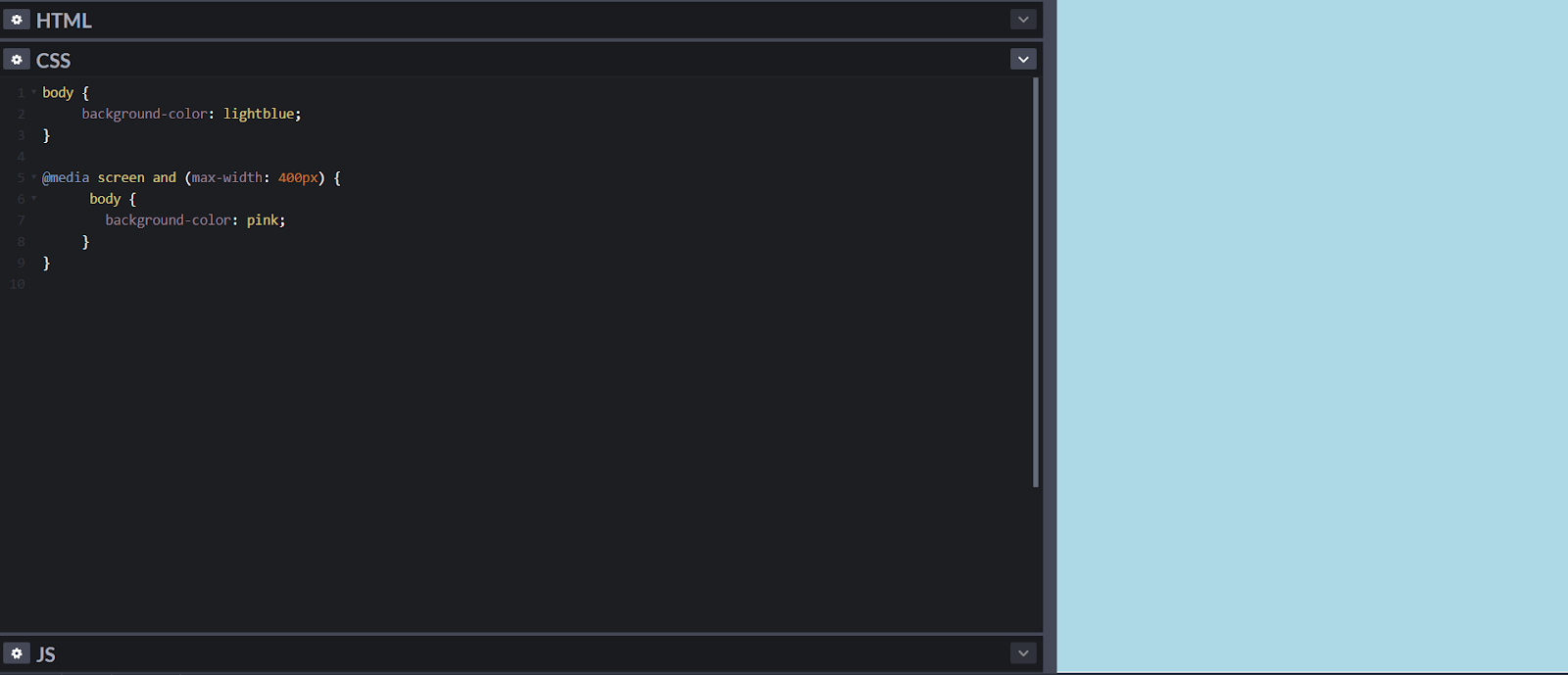

Viewport at 500 pixels shows light blue

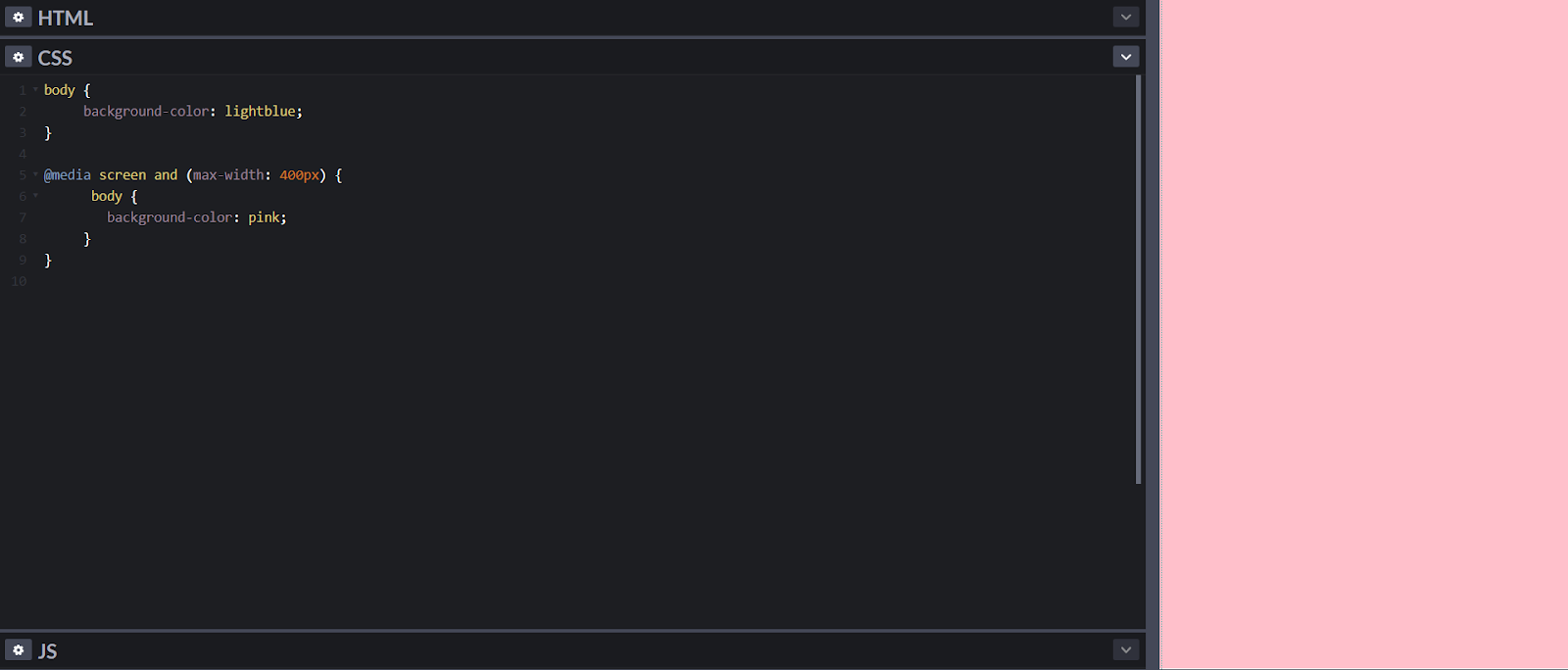

Viewport at 400 pixels shows pink

:rocket: Advanced Responsive Techniques with Grid

Now let's combine Grid with media queries for amazing responsive layouts:

css

.responsive-grid {
  display: grid;
  gap: 20px;

  /* Mobile first approach */
  grid-template-columns: 1fr;
  grid-template-areas:
    "header"
    "nav"
    "main"
    "aside"
    "footer";
}

/* Tablet */
@media (min-width: 768px) {
  .responsive-grid {
    grid-template-columns: 200px 1fr;
    grid-template-areas:
      "header header"
      "nav    main"
      "nav    aside"
      "footer footer";
  }
}

/* Desktop */
@media (min-width: 1024px) {
  .responsive-grid {
    grid-template-columns: 200px 1fr 200px;
    grid-template-areas:
      "header header header"
      "nav    main   aside"
      "footer footer footer";
  }
}

Container Queries (Modern CSS)

Container queries are the future! They let you style elements based on their container size, not the viewport:

css

.card-container {
  container-type: inline-size;
}

@container (min-width: 300px) {
  .card {
    display: flex;
    flex-direction: row;
  }
}

:memo: Note Container queries are newer than media queries. They're perfect for component-based design where you don't know what size container your component will be in!

:emoji: AI Prompt Suggestions for Responsive Design

Responsive Design Implementation

"Generate CSS media queries for responsive design across mobile, tablet, and desktop"
"Create a responsive navigation menu that works on all devices"
"Write CSS for responsive images and flexible layouts"
"Generate responsive typography that scales appropriately"
"Create code for a responsive grid layout using CSS Grid or Flexbox"

Responsive Strategy Planning

"What are the best practices for mobile-first responsive design?"
"How do I plan breakpoints for different screen sizes?"
"What are the key considerations for responsive user experience?"
"Help me design responsive layouts for complex web applications"
"What are the most important responsive design patterns to know?"

Responsive Design Concepts

"Explain the difference between responsive, adaptive, and fluid design"
"What are CSS media queries and how do they work?"
"Quiz me on responsive design principles and best practices"
"How does mobile-first design approach differ from desktop-first?"
"What are the viewport meta tag settings and why are they important?"

Responsive Design Troubleshooting

"Why isn't my website displaying correctly on mobile devices?"
"Help me fix responsive layout problems and overflow issues"
"My media queries aren't working - how do I troubleshoot this?"
"Why do my responsive images not scale properly?"
"How do I debug responsive design across different browsers and devices?"

Advanced Responsive Techniques

"What are some modern responsive design techniques and trends?"
"How can I create engaging responsive animations and interactions?"
"Give me ideas for progressive enhancement in responsive design"
"How do I implement responsive design for complex data visualizations?"
"What are some cutting-edge responsive design patterns for modern websites?"

:memo: Lesson Summary

In this lesson, you've learned powerful modern CSS techniques:

CSS Grid Fundamentals:

Grid is a two-dimensional layout system
Use fr units to divide space proportionally
Grid areas make complex layouts simple
Combine Grid with Flexbox for best results

Modern CSS Features:

CSS Variables keep your code organized and maintainable
Logical properties adapt to different languages
clamp() creates responsive typography without media queries

Responsive Design:

Always include the viewport meta tag
Use media queries to adapt layouts for different screens
Mobile-first design starts simple and adds complexity
Container queries are the future of component-based design

What's Next?

In our next lesson, we'll explore why CSS frameworks exist and start our journey into modern framework development. You'll learn about the problems that frameworks solve and get your first taste of both Tailwind CSS and Bootstrap.

But first, practice what you've learned! CSS Grid combined with responsive design principles creates incredibly powerful and flexible layouts. The more you experiment with these modern techniques, the more natural they become.

Resources for Further Learning

CSS Grid Garden - Interactive game to learn Grid
Grid by Example - Comprehensive Grid examples
CSS Grid Complete Guide - Detailed reference
Can I Use Grid - Browser support information

AI Prompts for This Lesson

Use these prompts to get help with CSS Grid:

For Layout Planning

css

"I want to create a [description] layout for my website. Can you suggest a CSS Grid structure with grid-template-areas that would work well? The layout should include [list your requirements]."

For Responsive Design

css

"Help me make this CSS Grid layout responsive. I want [desktop behavior] on desktop, [tablet behavior] on tablet, and [mobile behavior] on mobile. Here's my current CSS: [paste your code]"

For Debugging

css

"My CSS Grid isn't working as expected. [Describe the problem]. Here's my CSS: [paste your code]. Can you help me identify what's wrong?"

For Advanced Patterns

css

"I want to create a [specific layout type] using CSS Grid. Can you show me an example with CSS custom properties for theming and proper responsive design?"

Remember: CSS Grid is like a puzzle - once you understand how the pieces fit together, you can create amazing layouts!

:art: Practice Prompts

Ready to practice? Try these challenges:

Grid Gallery Challenge: Create a photo gallery where the first photo is twice as big as the others. Use Grid to make it responsive without media queries.
Dashboard Layout: Build a dashboard with a header, sidebar, main content area, and footer. Make it collapse to a single column on mobile.
Variable Theme: Create a simple page with CSS variables for all colors. Then add a button that switches between light and dark themes by changing the variables.
Responsive Cards: Make a card component that uses container queries to change from vertical to horizontal layout based on available space.
Magazine Layout: Design a magazine-style layout with articles of different sizes. Use Grid areas to name your sections and rearrange them at different screen sizes.

:bulb: Tip Start with the simplest challenge and work your way up. Each one teaches different Grid and responsive design concepts!

Lesson 6 of 14

Concept 6: CSS Grid & Modern CSS

CSS Grid & Modern CSS

:dart: Learning Objectives

By the end of this lesson, you will be able to:

Create complex layouts using CSS Grid
Understand the difference between Grid and Flexbox
Use CSS custom properties (variables) for better code organization
Build responsive layouts with media queries
Apply modern CSS features like clamp() and logical properties
Debug Grid layouts using browser DevTools

:emoji: What is CSS Grid?

:information_source: CSS Grid is a two-dimensional layout system that lets you create complex layouts with rows and columns. Unlike Flexbox (which works in one direction), Grid gives you control over both horizontal and vertical positioning.

:emoji: Grid vs Flexbox: When to Use Which?

Use Flexbox for: One-dimensional layouts like navigation bars, button groups, or centering single items
Use Grid for: Two-dimensional layouts like page structures, card galleries, or complex dashboard components
Use both together: They work great as a team! Use Grid for your overall layout and Flexbox for organizing content inside Grid items

:bulb: Tip Think of Flexbox as arranging items in a line (horizontal or vertical), while Grid arranges items in rows AND columns at the same time!

:emoji:️ Grid Fundamentals

Basic Grid Terminology

css

.grid-container {
  display: grid;
  grid-template-columns: 1fr 2fr 1fr; /* 3 columns */
  grid-template-rows: auto 1fr auto;  /* 3 rows */
  gap: 20px; /* Space between grid items */
}

Key Terms to Remember:

Grid Container: The parent element that holds everything (needs display: grid)
Grid Items: The direct children that sit inside the container
Grid Lines: The invisible lines that divide your grid (like graph paper)
Grid Tracks: The space between two lines (these become your rows or columns)
Grid Cell: Where a row and column meet (like a spreadsheet cell)
Grid Area: A rectangle that covers multiple cells

The Magic `fr` Unit

The fr (fraction) unit is Grid's special way of dividing space:

css

.three-column-layout {
  display: grid;
  grid-template-columns: 1fr 2fr 1fr;
  /* Column 1: 25% | Column 2: 50% | Column 3: 25% */
}

:memo: Note The fr unit automatically calculates sizes for you! In the example above:

1fr + 2fr + 1fr = 4 total fractions

First column gets 1/4 of the space

Middle column gets 2/4 (or 1/2) of the space

Last column gets 1/4 of the space

:rocket: Building Your First Grid Layout

Let's create a classic webpage layout step by step:

html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Grid Layout Example</title>
    <style>
        * {
            margin: 0;
            padding: 0;
            box-sizing: border-box;
        }

        .page-layout {
            display: grid;
            grid-template-areas:
                "header header header"
                "sidebar main aside"
                "footer footer footer";
            grid-template-columns: 200px 1fr 200px;
            grid-template-rows: auto 1fr auto;
            min-height: 100vh;
            gap: 20px;
            padding: 20px;
        }

        .header {
            grid-area: header;
            background: #3498db;
            color: white;
            padding: 20px;
            text-align: center;
        }

        .sidebar {
            grid-area: sidebar;
            background: #e74c3c;
            color: white;
            padding: 20px;
        }

        .main {
            grid-area: main;
            background: #2ecc71;
            color: white;
            padding: 20px;
        }

        .aside {
            grid-area: aside;
            background: #f39c12;
            color: white;
            padding: 20px;
        }

        .footer {
            grid-area: footer;
            background: #34495e;
            color: white;
            padding: 20px;
            text-align: center;
        }
    </style>
</head>
<body>
    <div class="page-layout">
        <header class="header">
            <h1>Website Header</h1>
        </header>
        <nav class="sidebar">
            <h2>Navigation</h2>
            <ul>
                <li>Home</li>
                <li>About</li>
                <li>Services</li>
                <li>Contact</li>
            </ul>
        </nav>
        <main class="main">
            <h2>Main Content</h2>
            <p>This is where your main content goes. The grid makes it easy to create professional layouts!</p>
        </main>
        <aside class="aside">
            <h2>Sidebar</h2>
            <p>Additional information or ads can go here.</p>
        </aside>
        <footer class="footer">
            <p>&copy; 2024 Your Website. All rights reserved.</p>
        </footer>
    </div>
</body>
</html>

:art: CSS Custom Properties (Variables)

Modern CSS includes custom properties (also called CSS variables) that make your code much easier to maintain and update:

css

:root {
  /* Define variables at the root level */
  --primary-color: #3498db;
  --secondary-color: #e74c3c;
  --accent-color: #f39c12;
  --text-color: #2c3e50;
  --background-color: #ecf0f1;

  --spacing-small: 10px;
  --spacing-medium: 20px;
  --spacing-large: 40px;

  --border-radius: 8px;
  --box-shadow: 0 2px 4px rgba(0,0,0,0.1);
}

.card {
  background: var(--background-color);
  color: var(--text-color);
  padding: var(--spacing-medium);
  border-radius: var(--border-radius);
  box-shadow: var(--box-shadow);
  border-left: 4px solid var(--primary-color);
}

.button {
  background: var(--primary-color);
  color: white;
  padding: var(--spacing-small) var(--spacing-medium);
  border: none;
  border-radius: var(--border-radius);
  cursor: pointer;
}

.button:hover {
  background: var(--secondary-color);
}

:bulb: Why Use CSS Variables?

Maintainability: Change a value in one place, and it updates everywhere automatically
Theming: Switch between light and dark themes with just a few variable changes
Consistency: Keep your spacing, colors, and sizes the same across your entire site
Dynamic: JavaScript can change these variables to create interactive effects

:bulb: Tip Name your variables clearly! Use --primary-color instead of --blue so you can change the color later without confusion.

:wrench: Advanced Grid Techniques

Responsive Grid with Auto-Fit

css

.card-grid {
  display: grid;
  grid-template-columns: repeat(auto-fit, minmax(300px, 1fr));
  gap: var(--spacing-medium);
  padding: var(--spacing-medium);
}

This powerful one-liner creates a responsive grid that:

Automatically creates columns based on available space
Makes each column at least 300px wide
Stretches columns to fill any extra space
No media queries needed!

Grid Line Positioning

css

.featured-item {
  grid-column: 1 / 3; /* Span from line 1 to line 3 */
  grid-row: 1 / 3;    /* Span from row 1 to row 3 */
}

/* Or use span notation */
.wide-item {
  grid-column: span 2; /* Span across 2 columns */
}

Complex Grid Layouts

css

.magazine-layout {
  display: grid;
  grid-template-columns: repeat(6, 1fr);
  grid-template-rows: repeat(4, 200px);
  gap: 15px;
}

.article-1 { grid-area: 1 / 1 / 3 / 4; } /* Large feature */
.article-2 { grid-area: 1 / 4 / 2 / 7; } /* Top right */
.article-3 { grid-area: 2 / 4 / 3 / 6; } /* Medium */
.article-4 { grid-area: 2 / 6 / 3 / 7; } /* Small */
.article-5 { grid-area: 3 / 1 / 5 / 4; } /* Bottom left */
.article-6 { grid-area: 3 / 4 / 5 / 7; } /* Bottom right */

:star2: Modern CSS Features

CSS Logical Properties

CSS now has smarter properties that adapt to different languages and writing directions:

css

.card {
  margin-inline-start: 20px; /* Left in LTR, right in RTL */
  margin-inline-end: 20px;   /* Right in LTR, left in RTL */
  margin-block-start: 10px;  /* Top */
  margin-block-end: 10px;    /* Bottom */
}

/* Shorthand */
.card {
  margin-inline: 20px; /* Horizontal margins */
  margin-block: 10px;  /* Vertical margins */
}

:memo: Note Logical properties are especially helpful for international websites that support languages written right-to-left (like Arabic or Hebrew).

CSS Clamp for Responsive Typography

The clamp() function creates text that automatically resizes:

css

.responsive-heading {
  font-size: clamp(1.5rem, 4vw, 3rem);
  /* Minimum: 1.5rem, Preferred: 4vw, Maximum: 3rem */
}

This means your heading will:

Never be smaller than 1.5rem
Try to be 4% of the viewport width
Never be larger than 3rem

Modern Color Functions

css

:root {
  --primary: hsl(210, 100%, 50%);
  --primary-light: hsl(210, 100%, 70%);
  --primary-dark: hsl(210, 100%, 30%);

  /* Or use the newer color functions */
  --accent: color(display-p3 0.8 0.2 0.4);
}

:computer: Practical Activity: Grid Layout Challenge

Let's put everything together! Create a responsive photo gallery using CSS Grid:

html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Photo Gallery</title>
    <style>
        :root {
            --grid-gap: 15px;
            --border-radius: 12px;
            --shadow: 0 4px 6px rgba(0, 0, 0, 0.1);
            --transition: transform 0.3s ease, box-shadow 0.3s ease;
        }

        * {
            margin: 0;
            padding: 0;
            box-sizing: border-box;
        }

        body {
            font-family: 'Arial', sans-serif;
            background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
            min-height: 100vh;
            padding: 40px 20px;
        }

        .gallery-container {
            max-width: 1200px;
            margin: 0 auto;
        }

        .gallery-title {
            text-align: center;
            color: white;
            font-size: clamp(2rem, 5vw, 3.5rem);
            margin-bottom: 40px;
            text-shadow: 2px 2px 4px rgba(0,0,0,0.3);
        }

        .photo-grid {
            display: grid;
            grid-template-columns: repeat(auto-fit, minmax(250px, 1fr));
            gap: var(--grid-gap);
        }

        .photo-item {
            background: white;
            border-radius: var(--border-radius);
            overflow: hidden;
            box-shadow: var(--shadow);
            transition: var(--transition);
            cursor: pointer;
        }

        .photo-item:hover {
            transform: translateY(-10px);
            box-shadow: 0 8px 25px rgba(0, 0, 0, 0.15);
        }

        .photo-item:nth-child(1) {
            grid-row: span 2;
        }

        .photo-item:nth-child(4) {
            grid-column: span 2;
        }

        .photo-item:nth-child(7) {
            grid-row: span 2;
        }

        .photo-img {
            width: 100%;
            height: 100%;
            object-fit: cover;
            display: block;
            min-height: 200px;
        }

        .photo-caption {
            padding: 15px;
            text-align: center;
            font-weight: bold;
            color: #333;
        }

        @media (max-width: 768px) {
            .photo-item:nth-child(n) {
                grid-column: span 1 !important;
                grid-row: span 1 !important;
            }
        }
    </style>
</head>
<body>
    <div class="gallery-container">
        <h1 class="gallery-title">Modern Photo Gallery</h1>
        <div class="photo-grid">
            <div class="photo-item">
                <img src="https://picsum.photos/400/600?random=1" alt="Photo 1" class="photo-img">
                <div class="photo-caption">Mountain View</div>
            </div>
            <div class="photo-item">
                <img src="https://picsum.photos/400/400?random=2" alt="Photo 2" class="photo-img">
                <div class="photo-caption">City Life</div>
            </div>
            <div class="photo-item">
                <img src="https://picsum.photos/400/400?random=3" alt="Photo 3" class="photo-img">
                <div class="photo-caption">Ocean Waves</div>
            </div>
            <div class="photo-item">
                <img src="https://picsum.photos/800/400?random=4" alt="Photo 4" class="photo-img">
                <div class="photo-caption">Desert Landscape</div>
            </div>
            <div class="photo-item">
                <img src="https://picsum.photos/400/400?random=5" alt="Photo 5" class="photo-img">
                <div class="photo-caption">Forest Path</div>
            </div>
            <div class="photo-item">
                <img src="https://picsum.photos/400/400?random=6" alt="Photo 6" class="photo-img">
                <div class="photo-caption">Urban Art</div>
            </div>
            <div class="photo-item">
                <img src="https://picsum.photos/400/600?random=7" alt="Photo 7" class="photo-img">
                <div class="photo-caption">Sunset Sky</div>
            </div>
            <div class="photo-item">
                <img src="https://picsum.photos/400/400?random=8" alt="Photo 8" class="photo-img">
                <div class="photo-caption">Wild Flowers</div>
            </div>
        </div>
    </div>
</body>
</html>

:dart: Your Challenge Tasks

Task One: Master Grid Basics

Create a simple 3x3 grid layout with:

Header spanning all 3 columns
Content in the center 3 cells
Footer spanning all 3 columns
Use CSS variables for colors and spacing

Task 2: Responsive Card Grid

Build a card layout that:

Shows 4 cards per row on large screens
Shows 2 cards per row on tablets
Shows 1 card per row on phones
Uses auto-fit and minmax() (no media queries!)

Task 3: Complex Magazine Layout

Create a magazine-style layout where:

Feature article takes up a 2x2 grid space
4 smaller articles fill the remaining space
All articles have hover effects
Layout adapts to mobile screens

:bug: Debugging CSS Grid

Common Grid Issues and Solutions

Items not positioning correctly

css

/* Problem: Forgot to set display: grid */
.container {
  grid-template-columns: 1fr 1fr 1fr; /* This won't work! */
}

/* Solution: Always set display first */
.container {
  display: grid;
  grid-template-columns: 1fr 1fr 1fr;
}

Grid items overflowing

css

/* Problem: Content too wide for grid */
.grid-item {
  width: 500px; /* Fixed width might overflow */
}

/* Solution: Use min-width and max-width */
.grid-item {
  min-width: 0; /* Allow shrinking */
  max-width: 100%; /* Prevent overflow */
}

Grid DevTools Tips

Your browser has amazing tools for debugging Grid:

Right-click on any grid container -> Inspect
Look for the small "grid" badge next to the element
Click it to see your grid lines appear on the page
Use the Layout panel to experiment with different values

:bulb: Tip The Grid inspector shows line numbers, making it easy to see exactly where your items should go!

:white_check_mark: Best Practices

One. Plan Your Grid First

Sketch your layout on paper first
Count how many rows and columns you need
Mark which items need to span multiple cells

2. Use Semantic Grid Areas

Using named areas makes your code easier to understand:

css

grid-template-areas:
  "header  header  header"
  "nav     main    aside"
  "footer  footer  footer";

3. Combine Grid with Flexbox

They're best friends! Use Grid for layout, Flexbox for content:

css

.grid-item {
  display: flex;
  align-items: center;
  justify-content: center;
}

4. Mobile-First Responsive Design

Start with mobile, then add complexity:

css

/* Mobile first */
.grid-container {
  display: grid;
  grid-template-columns: 1fr;
}

/* Tablet and up */
@media (min-width: 768px) {
  .grid-container {
    grid-template-columns: 200px 1fr;
  }
}

:iphone: Making Modern Layouts Responsive

What is Responsive Web Design?

:information_source: Responsive Web Design means creating web pages that look great and work well on all devices - from tiny phones to giant desktop monitors.

Your web page should automatically adjust to fit any screen size.

Example of Responsive Web Page on phone, tablet, and desktop

We use HTML and CSS to make content adapt by:

Resizing elements
Hiding or showing different content
Rearranging layouts
Adjusting font sizes

:emoji:️ The Viewport

:information_source: Viewport is the visible area of a web page on your device's screen.

Key facts about viewports:

Phone viewports are much smaller than desktop viewports
We control the viewport using a special <meta> tag
This tag tells browsers how to display your page properly

The Essential Viewport Meta Tag

Every responsive web page needs this line in the <head> section:

html

<meta name="viewport" content="width=device-width, initial-scale=1.0">

Let's break down what this does:

Attribute	What it Does
`name="viewport"`	Tells the browser this tag controls the viewport
`width=device-width`	Makes the page width match the device's screen width
`initial-scale=1.0`	Sets the starting zoom level (1.0 = no zoom)

:warning: Warning Without this viewport meta tag, mobile browsers will try to show your page as if it's on a desktop, making everything tiny!

Example

An example of a web page without the viewport meta tag, and the same web page with the viewport meta tag:

Example of the Same Web Page Without and With the Viewport Meta Tag

:art: Media Queries

Media queries are CSS's superpower for responsive design! They let you apply different styles based on the device or screen size.

Key points:

Media queries use the @media rule
They check conditions like screen width
You can have different styles for phones, tablets, and desktops

What Media Queries Can Check

Media queries are like asking questions about the device:

Viewport width and height: How big is the browser window?
Device width and height: How big is the actual screen?
Orientation: Is the device held sideways (landscape) or upright (portrait)?
Resolution: How sharp is the screen?

CSS Syntax for Media Query

css

@media mediatype and (mediafeature and|or mediafeature) {
CSS-Code;
}

Media Types

Common media types you'll use:

Media Type	When to Use It
`all`	Works for all devices (most common)
`screen`	For devices with screens (computers, phones, tablets)
`print`	For when someone prints your page
`speech`	For screen readers that speak content aloud

:memo: Note Most of the time, you'll use screen for regular web development!

Media Features

The most important media features for responsive design:

Media Feature	What It Checks
`width`	The exact viewport width
`min-width`	Is the viewport at least this wide?
`max-width`	Is the viewport no wider than this?

:bulb: Tip Use min-width for mobile-first design and max-width for desktop-first design!

For more media features, visit W3Schools Media Query Reference

Conditional Rules

Conditional Rule	How It Works
`and`	Both conditions must be true
`or` (using comma)	At least one condition must be true

Media Query Example

Let's see media queries in action!

Example: Changing Colors Based on Screen Size

css

body {
  background-color: lightblue;  /* Default for larger screens */
}

@media screen and (max-width: 400px) {
  body {
    background-color: pink;  /* Only applies when screen is 400px or smaller */
  }
}

How It Works:

Larger screens (401px+): Shows light blue background
Small screens (400px or less): Shows pink background

Viewport at 500 pixels shows light blue

Viewport at 400 pixels shows pink

:rocket: Advanced Responsive Techniques with Grid

Now let's combine Grid with media queries for amazing responsive layouts:

css

.responsive-grid {
  display: grid;
  gap: 20px;

  /* Mobile first approach */
  grid-template-columns: 1fr;
  grid-template-areas:
    "header"
    "nav"
    "main"
    "aside"
    "footer";
}

/* Tablet */
@media (min-width: 768px) {
  .responsive-grid {
    grid-template-columns: 200px 1fr;
    grid-template-areas:
      "header header"
      "nav    main"
      "nav    aside"
      "footer footer";
  }
}

/* Desktop */
@media (min-width: 1024px) {
  .responsive-grid {
    grid-template-columns: 200px 1fr 200px;
    grid-template-areas:
      "header header header"
      "nav    main   aside"
      "footer footer footer";
  }
}

Container Queries (Modern CSS)

Container queries are the future! They let you style elements based on their container size, not the viewport:

css

.card-container {
  container-type: inline-size;
}

@container (min-width: 300px) {
  .card {
    display: flex;
    flex-direction: row;
  }
}

:memo: Note Container queries are newer than media queries. They're perfect for component-based design where you don't know what size container your component will be in!

:emoji: AI Prompt Suggestions for Responsive Design

Responsive Design Implementation

"Generate CSS media queries for responsive design across mobile, tablet, and desktop"
"Create a responsive navigation menu that works on all devices"
"Write CSS for responsive images and flexible layouts"
"Generate responsive typography that scales appropriately"
"Create code for a responsive grid layout using CSS Grid or Flexbox"

Responsive Strategy Planning

"What are the best practices for mobile-first responsive design?"
"How do I plan breakpoints for different screen sizes?"
"What are the key considerations for responsive user experience?"
"Help me design responsive layouts for complex web applications"
"What are the most important responsive design patterns to know?"

Responsive Design Concepts

"Explain the difference between responsive, adaptive, and fluid design"
"What are CSS media queries and how do they work?"
"Quiz me on responsive design principles and best practices"
"How does mobile-first design approach differ from desktop-first?"
"What are the viewport meta tag settings and why are they important?"

Responsive Design Troubleshooting

"Why isn't my website displaying correctly on mobile devices?"
"Help me fix responsive layout problems and overflow issues"
"My media queries aren't working - how do I troubleshoot this?"
"Why do my responsive images not scale properly?"
"How do I debug responsive design across different browsers and devices?"

Advanced Responsive Techniques

"What are some modern responsive design techniques and trends?"
"How can I create engaging responsive animations and interactions?"
"Give me ideas for progressive enhancement in responsive design"
"How do I implement responsive design for complex data visualizations?"
"What are some cutting-edge responsive design patterns for modern websites?"

:memo: Lesson Summary

In this lesson, you've learned powerful modern CSS techniques:

CSS Grid Fundamentals:

Grid is a two-dimensional layout system
Use fr units to divide space proportionally
Grid areas make complex layouts simple
Combine Grid with Flexbox for best results

Modern CSS Features:

CSS Variables keep your code organized and maintainable
Logical properties adapt to different languages
clamp() creates responsive typography without media queries

Responsive Design:

Always include the viewport meta tag
Use media queries to adapt layouts for different screens
Mobile-first design starts simple and adds complexity
Container queries are the future of component-based design

What's Next?

Resources for Further Learning

CSS Grid Garden - Interactive game to learn Grid
Grid by Example - Comprehensive Grid examples
CSS Grid Complete Guide - Detailed reference
Can I Use Grid - Browser support information

AI Prompts for This Lesson

Use these prompts to get help with CSS Grid:

For Layout Planning

css

"I want to create a [description] layout for my website. Can you suggest a CSS Grid structure with grid-template-areas that would work well? The layout should include [list your requirements]."

For Responsive Design

css

"Help me make this CSS Grid layout responsive. I want [desktop behavior] on desktop, [tablet behavior] on tablet, and [mobile behavior] on mobile. Here's my current CSS: [paste your code]"

For Debugging

css

"My CSS Grid isn't working as expected. [Describe the problem]. Here's my CSS: [paste your code]. Can you help me identify what's wrong?"

For Advanced Patterns

css

"I want to create a [specific layout type] using CSS Grid. Can you show me an example with CSS custom properties for theming and proper responsive design?"

Remember: CSS Grid is like a puzzle - once you understand how the pieces fit together, you can create amazing layouts!

:art: Practice Prompts

Ready to practice? Try these challenges:

Grid Gallery Challenge: Create a photo gallery where the first photo is twice as big as the others. Use Grid to make it responsive without media queries.
Dashboard Layout: Build a dashboard with a header, sidebar, main content area, and footer. Make it collapse to a single column on mobile.
Variable Theme: Create a simple page with CSS variables for all colors. Then add a button that switches between light and dark themes by changing the variables.
Responsive Cards: Make a card component that uses container queries to change from vertical to horizontal layout based on available space.
Magazine Layout: Design a magazine-style layout with articles of different sizes. Use Grid areas to name your sections and rearrange them at different screen sizes.

:bulb: Tip Start with the simplest challenge and work your way up. Each one teaches different Grid and responsive design concepts!
