BBP Lesson 3: Operators and Calculations

:dart: Learning Objectives

By the end of this lesson, you'll be able to:

• :emoji: Use arithmetic operators to perform calculations in EduBlocks
• :link: Combine strings together using concatenation
• :package: Assign and modify values in variables
• :emoji: Compare values to make decisions
• :emoji: Use logical operators to create complex conditions
• :emoji: Understand how EduBlocks operators translate to Python code

Definition: Operators are special symbols that tell the computer to perform specific actions like calculations, comparisons, or logical operations. Think of them as the action words of programming!

:information_source: Remember! Just like in math class, operators help us do calculations. But in programming, they can do much more - like comparing values, combining text, and making decisions!

Let's Get Started! :rocket:

Understanding Operators

Think of operators as the tools in your programming toolbox. Each one has a special job to do!

Types of Operators

As the name suggests, operators perform various operations including mathematical calculations, logical comparisons, and assignments.

Main Operator Categories:

• :emoji: Arithmetic operators - Mathematical calculations (like a calculator!)
• :package: Assignment operators - Storing and changing values in variables
• :emoji: Comparison operators - Checking if values are equal, greater, or less than each other
• :emoji: Logical operators - Combining multiple conditions together

These represent the most commonly used operators in programming. Throughout this program, we will revisit and expand on these operators, covering all essential operations for effective programming.

:bulb: Pro Tip!

In EduBlocks, operators are color-coded! Math operators are usually green, logic operators are blue, and variable operators are orange. This makes them easy to spot!

Arithmetic Operators

Mathematical Operations :emoji:

Purpose: Perform mathematical calculations with numerical values - just like using a calculator!

Operator	Name	Example	Answer	Real-World Use
+	Addition	x + y	10 + 10 = 20	Adding scores in a game
-	Subtraction	x - y	7 - 2 = 5	Calculating change when shopping
*	Multiplication	x * y	4 * 3 = 12	Finding total cost of multiple items
/	Division	x / y	64 / 8 = 8	Splitting pizza slices equally
%	Modulus (Remainder)	x % y	7 % 3 = 1	Checking if a number is even or odd

In EduBlocks, arithmetic operations are available as value blocks under the Math category for easy integration into your programs.

:information_source: Remember! The modulus operator (%) gives you the remainder after division. It's super useful for:

• Checking if a number is even: number % 2 == 0
• Creating patterns that repeat every few steps
• Finding out if one number divides evenly into another

:video_game: Try This Challenge!

Can you create a simple calculator in EduBlocks that:

1. Takes two numbers as input
2. Performs all five arithmetic operations
3. Displays the results

:bulb: Troubleshooting Math Blocks

If your math isn't working as expected:

• Check that you're using number blocks (not text blocks)
• Make sure you haven't accidentally mixed text and numbers
• Remember that division by zero will cause an error!

String Concatenation :link:

Purpose: Combine multiple strings into a single text value using the + operator - like gluing words together!

String concatenation joins text values together, such as "Hello " + "World" resulting in "Hello World".

:information_source: Remember! When concatenating strings, don't forget spaces! "Hello" + "World" gives "HelloWorld", but "Hello " + "World" gives "Hello World"

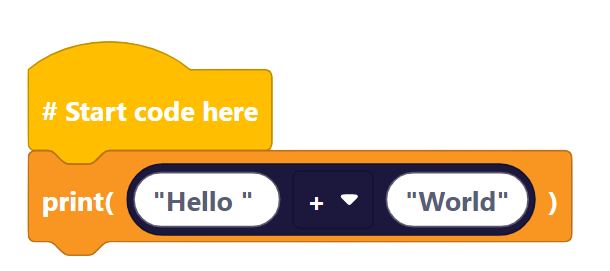

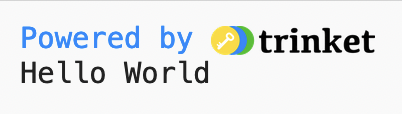

Basic Concatenation Example:

Follow these steps:

1. Drag a print block from the Basic category
2. Drag a text block and type your first string
3. Use the + operator to join strings

Input	Output

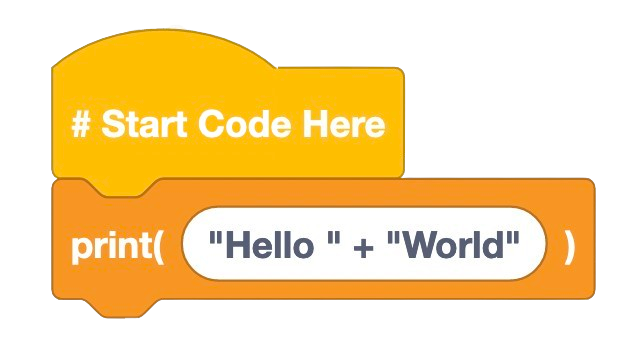

Alternative Method using Math Category:

You can also use the Math category value blocks for concatenation:

Input	Output

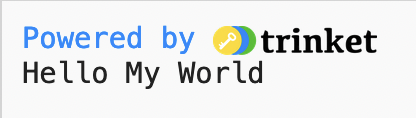

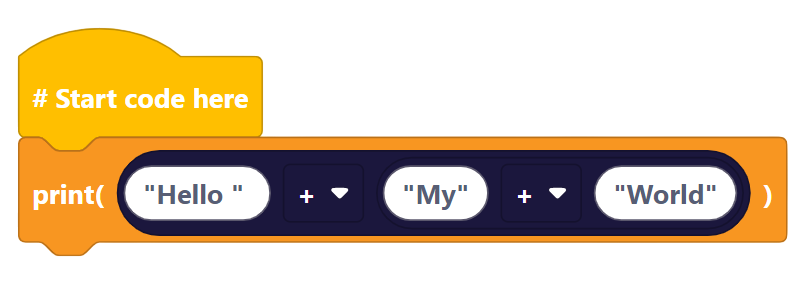

Chaining Multiple Strings:

Want to join more than two strings? You can chain them together!

Input	Output

:bulb: Important! Mixing Strings and Numbers

String concatenation only works with string values. To combine numbers with strings:

1. Convert the number to a string first using the str() block
2. Then concatenate as normal Example: "You scored " + str(score) + " points!"

:video_game: String Challenge!

Create a Mad Libs game:

1. Ask the user for a noun, verb, and adjective
2. Concatenate them into a funny sentence
3. Print the result

:emoji: Python Connection: In Python, we concatenate strings the same way: "Hello " + "World"

Assignment Operators

Variable Assignment and Modification :package:

Purpose: Store values in variables and change them as your program runs - like updating a game score!

Operator	Example	Same As	Description	Real-World Use
=	x = 5	x = 5	Store a value in a variable	Setting initial player health to 100
+=	x += 3	x = x + 3	Add to current value	Adding points to a score
-=	x -= 3	x = x - 3	Subtract from current value	Losing lives in a game

In EduBlocks, assignment operations are performed using variable command blocks, enabling both basic assignment and increment/decrement operations for efficient value modification.

:information_source: Remember! The += and -= operators are shortcuts! Instead of writing:

python

score = score + 10

You can write:

python

score += 10

Much easier, right? :emoji:

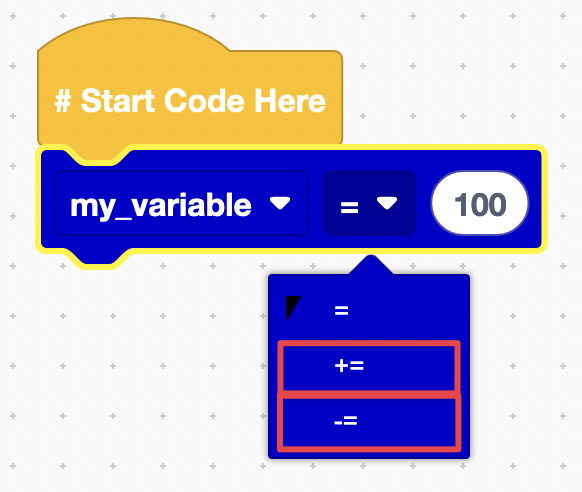

How to Use Assignment Operators in EduBlocks:

1. Drag a variable block from the Variables category
2. Choose "set" for basic assignment (=)
3. Choose "change by" for increment/decrement (+=/-=)
4. Connect your value blocks

:bulb: Common Uses for Assignment Operators

• Game scores: score += 100 when collecting coins
• Countdown timers: time -= 1 every second
• Inventory systems: items += 1 when picking up items
• Health bars: health -= damage when hit by enemies

:video_game: Assignment Challenge!

Create a simple clicker game:

1. Start with clicks = 0
2. Each time the user presses a key, use clicks += 1
3. Display the total clicks
4. Bonus: Add a multiplier that increases clicks by more than 1!

Comparison Operators

Value Comparison Operations :emoji:

Purpose: Compare two values and return boolean results (True or False) for making decisions in your programs - like checking if you have enough coins to buy an item!

Operator	Name	Example	Description	Game Example
==	Equal	x == y	Is x exactly equal to y?	Check if score == 100
!=	Not equal	x != y	Is x different from y?	Check if lives != 0
>	Greater than	x > y	Is x bigger than y?	Check if score > highScore
<	Less than	x < y	Is x smaller than y?	Check if `health < 20`
>=	Greater than or equal	x >= y	Is x bigger or equal to y?	Check if ``age >= 13``
<=	Less than or equal	x <= y	Is x smaller or equal to y?	Check if `timer <= 0`

:information_source: Remember!

• Use == (double equals) to compare values
• Use = (single equals) to assign values
• Don't mix them up! It's a common mistake!

Examples of True Comparisons :white_check_mark:

Results that evaluate to True:

Expression	Result	Why?
5 == 5	True	5 equals 5
33 > 30	True	33 is greater than 30
23.9 != 20.0	True	23.9 is not equal to 20.0
2 >= 2	True	2 is equal to 2 (satisfies "or equal")
3 < 7	True	3 is less than 7
2 <= 2	True	2 is equal to 2 (satisfies "or equal")

Examples of False Comparisons :x:

Results that evaluate to False:

Expression	Result	Why?
2 == 3	False	2 does not equal 3
22 < 11	False	22 is not less than 11
88 > 103	False	88 is not greater than 103
3 >= 5	False	3 is not greater than or equal to 5
4 != 4	False	4 does equal 4
7 <= 1	False	7 is not less than or equal to 1

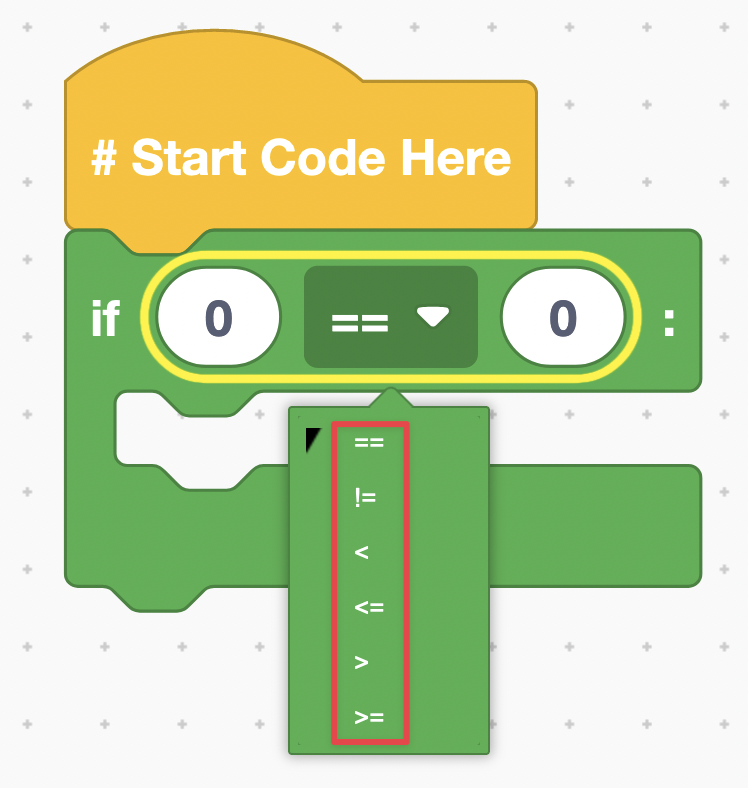

Using Comparison Operators in EduBlocks

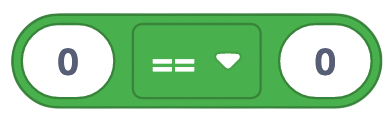

Comparison operations are available as value blocks under the Logic category.

Follow these steps:

1. Go to the Logic category (usually blue blocks)
2. Drag a comparison block (it has two empty slots)
3. Choose your comparison operator from the dropdown
4. Place values or variables in the slots

:bulb: Troubleshooting Comparisons

Data Type Consistency: Only compare values of the same data type!

• :white_check_mark: Good: 5 > 3 (both numbers)
• :white_check_mark: Good: "apple" == "apple" (both strings)
• :x: Bad: "5" > 3 (string vs number - won't work as expected!)

If your comparisons aren't working:

1. Check that both values are the same type
2. Use int() or str() blocks to convert if needed
3. Remember that "5" (string) and 5 (number) are different!

:video_game: Comparison Challenge!

Create a password checker:

1. Set a secret password in a variable
2. Ask the user to enter a password
3. Use == to check if they match
4. Print "Access Granted" or "Access Denied"
5. Bonus: Check if the password length >= 8 for extra security!

:emoji: Python Connection: In Python, comparison operators work exactly the same way!

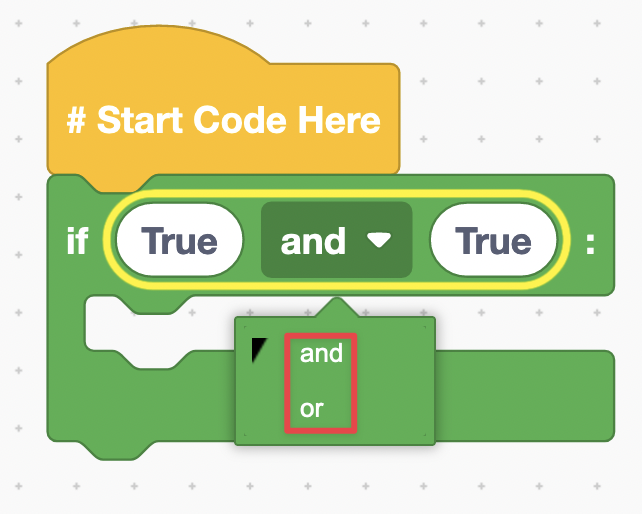

Logical Operators

Combining Conditional Statements

Purpose: Combine multiple conditional statements and return boolean results for complex decision-making.

Operator	Name	Example
and	Returns True if both statements are true	x < 5 and x < 10
or	Returns True if one of the statements is true	x < 5 or x < 4
not	Reverse the result, returns False if the result is true	not(x < 5 and x < 10)

AND Operator Truth Table

Rule: All conditions must be True for the entire statement to be True.

AND conditionals	Output
True and True	True
True and False	False
False and True	False
False and False	False

OR Operator Truth Table

Rule: At least one condition must be True for the entire statement to be True.

OR conditionals	Output
True or True	True
True or False	True
False or True	True
False or False	False

Professional Tip: Master these operators as they form the foundation of program logic and decision-making. Understanding operator precedence and proper data type handling will prevent common programming errors and enable you to create more sophisticated and reliable programs.
