BBP Lesson 2: Variables and Data Types

:dart: Learning Objectives

By the end of this lesson, you'll be able to:

• Create and name variables using EduBlocks blocks
• Understand different data types (strings, numbers, booleans)
• Convert between different data types
• Use variables to store and display information
• Connect visual blocks to real Python code

Definition: Variables are containers for storing data values, acting like labeled boxes in computer memory that hold information for use throughout your program.

• Storage containers with names and values
• Enable data reuse and manipulation
• Fundamental building blocks of programming
• Allow programs to remember and process information

Let's Get Started! :rocket:

Understanding Variables

The Concept of Variables

Variables function like storage boxes or save slots in computer memory, each containing a specific value that can be accessed by its unique name.

Think of variables as:

• :package: Labeled boxes storing different items
• :video_game: Save slots in video games
• :emoji:️ Name tags for values in memory
• :card_index_dividers: Containers that can hold various types of data

Each variable consists of two essential components:

• Variable name - The identifier you choose (like a label on a box)
• Value - The data stored inside (like the item in the box)

:information_source: Remember! In Python, when we create a variable, we're telling the computer: "Save this information with this name so I can use it later!"

Creating Variables in EduBlocks

Step-by-Step Variable Creation

EduBlocks provides an intuitive interface for creating and managing variables through the Variables category.

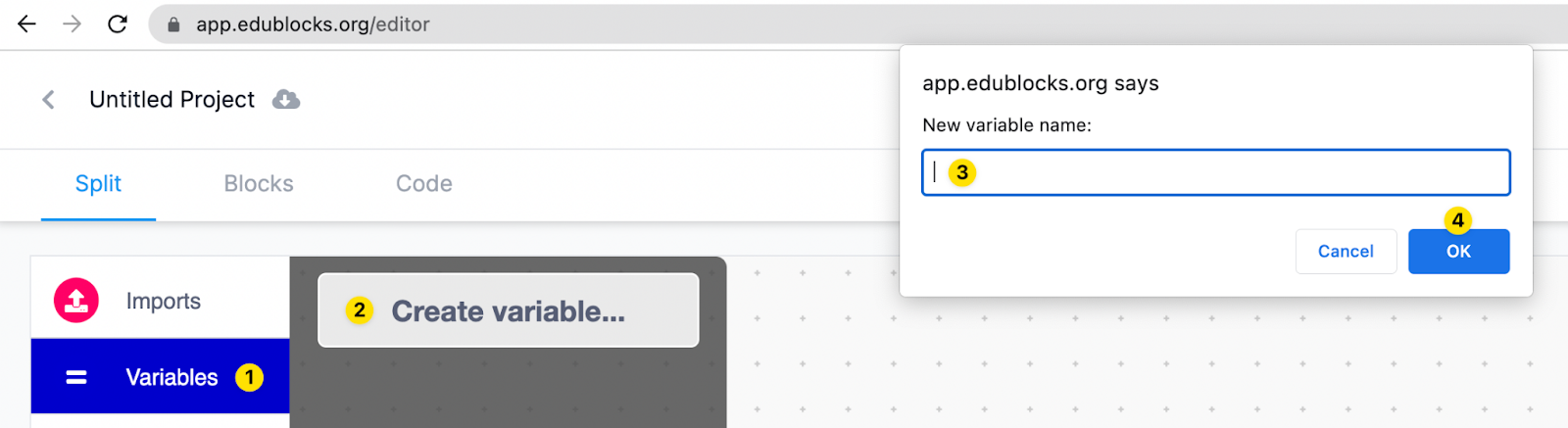

Creation Process:

1. Click on the Variables category in the blocks panel
2. Select Create variable... button
3. Enter your chosen variable name in the popup window
4. Press OK to confirm creation

:bulb: Pro Tip!

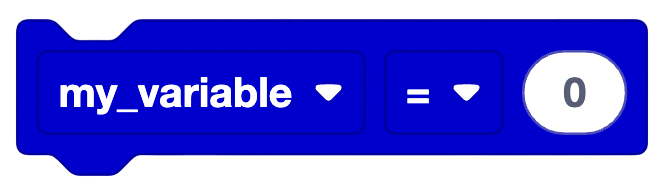

After creating a variable, EduBlocks automatically generates two blocks for you:

• A command block (to set the variable's value)
• A value block (to use the variable in your code)

Variable Naming Rules

Purpose: Establish consistent, readable, and valid variable names following Python conventions.

Essential Naming Guidelines:

• Use Snake Case formatting (lowercase with underscores)
• First character cannot be a number
• Avoid Python reserved words (like print, if, for)
• Choose descriptive, meaningful names

:white_check_mark: Good Examples	Description	:x: Bad Examples	Why It's Bad
first_name	User's first name	1stName	Starts with number
multiply_by_two	Mathematical operation	multiply by two	Has spaces
score	Game or test score	s	Too vague
number_list	Collection of numbers	list	Reserved word
student1	First student identifier	student#1	Special character
third_variable	Sequential variable	3rdVariable	Starts with number

:information_source: Remember! In real Python code, these variable names become:

python

first_name = "Alice"
score = 100
number_list = [1, 2, 3, 4, 5]

Using Variables

Variable Blocks in EduBlocks

After creating a variable, EduBlocks automatically generates both command and value blocks for immediate use.

Practical Variable Usage

Variables enable data storage, retrieval, and manipulation throughout your program.

How to use variables:

1. Drag the set variable block to assign a value
2. Connect a value block (text, number, etc.) to set what it stores
3. Use the variable value block wherever you need that data
4. Combine with print blocks to display your variable's content

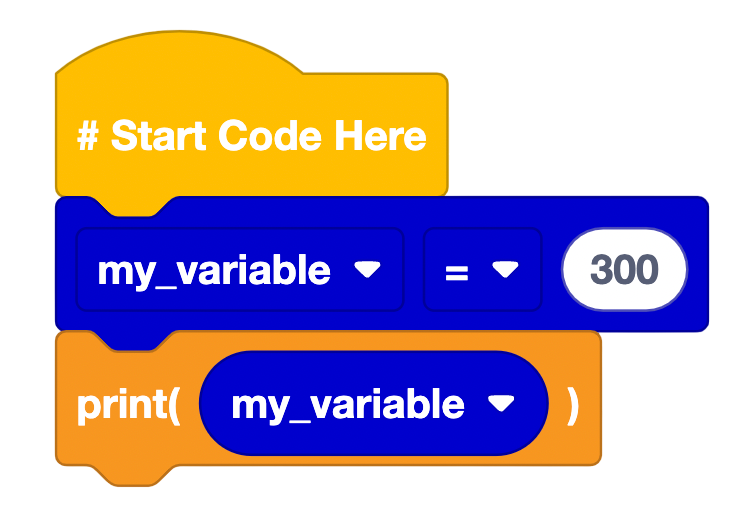

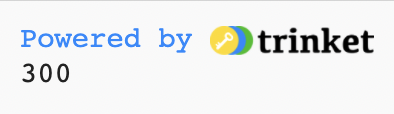

Input Example	Output Result

:bulb: Troubleshooting!

If your variable isn't showing the right value:

• Check that you've set the variable BEFORE trying to use it
• Make sure you're using the correct variable name
• Remember that variables are case-sensitive!

Managing Variables

Renaming Variables

Purpose: Update variable names to improve code clarity and maintain consistency.

Steps to rename:

1. Click on the dropdown arrow next to any variable block
2. Select the rename option from the menu
3. Type the new name in the dialog box
4. Click OK to apply the change

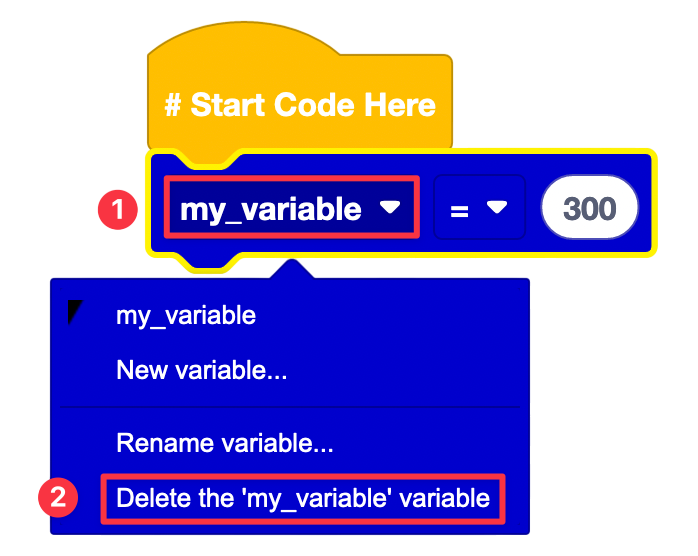

Deleting Variables

Purpose: Remove unused variables to keep your workspace organized and prevent confusion.

Steps to delete:

1. Click on the dropdown arrow next to any variable block
2. Select the delete option from the menu
3. Confirm the deletion when prompted

:bulb: Keep it Clean!

Delete variables you're no longer using to keep your workspace tidy. It's like cleaning up your room - it makes it easier to find what you need!

Data Types

Understanding Data Categories

Purpose: Different types of data serve different purposes and have unique characteristics and capabilities.

Variables can store various data types, similar to how different containers hold different items or how blood bags contain specific blood types.

:information_source: Remember! Just like you wouldn't put soup in a pencil case or pencils in a soup bowl, different data types are designed for different purposes!

Categories	Types	Descriptions	Examples	Real-World Analogy
Texts :memo:	String	Ordered sequence of characters	"Hello World", "asd123", "Hi, my name is Jaydon\n"	Like words in a book
Numbers :emoji:	Integer (whole numbers)	Mathematical numbers for calculations	55, 1000, -42	Like counting objects
	Float (decimal numbers)	Numbers with decimal points	12.73, 33.7, 5.0	Like measuring with a ruler
Truth :emoji::emoji:	Boolean	True or False values	True, False	Like yes/no questions
Arrays :clipboard:	List	Multiple items in single variable	["apple", 500, True]	Like a shopping list

Note: This program focuses on strings, numbers, lists, and booleans, though Python supports additional types like tuples, sets, dictionaries, and binaries.

Type Conversion

The Need for Conversion

Purpose: Transform data from one type to another to enable different operations and display formats.

Common conversion scenarios:

• :emoji::emoji:️:emoji: Input functions return strings requiring number conversion for calculations
• :emoji::emoji:️:emoji: Number variables need string conversion for text display
• :emoji: Data compatibility between different program sections

:bulb: Why Convert?

Imagine trying to add "5" + "3" as text - you'd get "53" instead of 8! Converting to numbers first gives you the math result you want.

Converting to Integer

The int() function converts values to whole numbers, removing decimal portions.

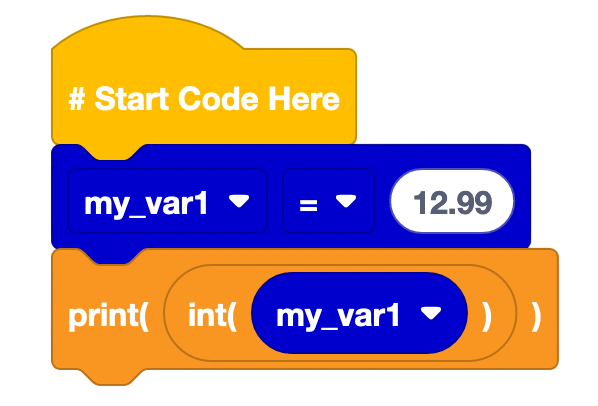

Example: Converting float to integer for whole number calculations.

How to use:

1. Find the int() block in the Text category
2. Place your number or variable inside the int() block
3. The result will be a whole number (no decimals)

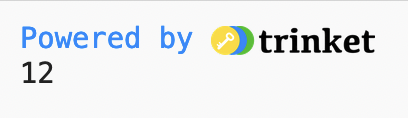

Input Code	Output Result

:information_source: Python Connection! In real Python, this looks like:

python

decimal_number = 12.73
whole_number = int(decimal_number)  # Result: 12

Converting to String

The str() function transforms any data type into text format for display and concatenation.

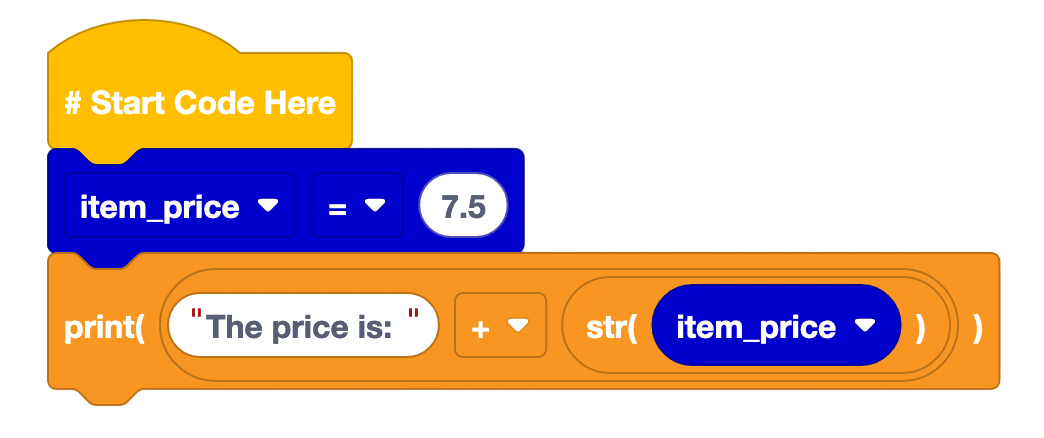

Example: Converting number to string for text combination.

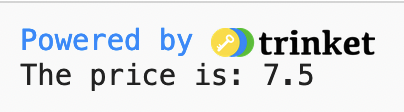

Input Code	Output Result

Converting to Float

The float() function transforms integers into decimal numbers for precise calculations.

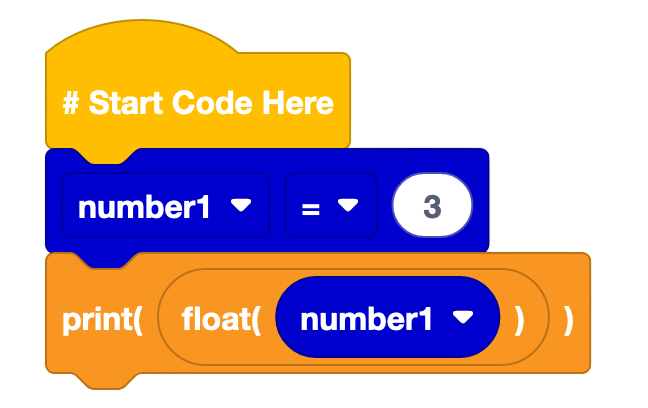

Example: Converting integer to float for decimal arithmetic.

Input Code	Output Result

Professional Tip: Always consider data types when designing programs. Proper type conversion prevents errors and ensures your program handles data correctly across different operations and display requirements.
