CSS Flexbox

:dart: Learning Objectives

By the end of this lesson, you will:

• Understand what CSS Flexbox is and why it's useful
• Create a flex container using EduBlocks
• Use flexbox properties to arrange elements
• Build responsive layouts without complex calculations
• Connect visual blocks to real CSS flexbox code

:clipboard: Before You Start

Make sure you have:

• :white_check_mark: Completed the CSS Box Model lesson
• :white_check_mark: Your EduBlocks workspace open
• :white_check_mark: A web browser ready for testing
• :white_check_mark: Basic understanding of HTML containers (divs)

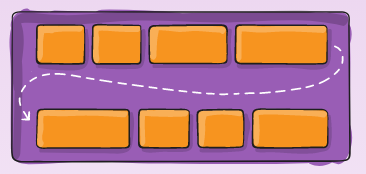

:information_source: Info What is CSS Flexbox? CSS Flexbox is a layout module in CSS that provides a flexible way to distribute and align elements within a container. It makes arranging items in rows or columns super easy!

Think of it like organizing toys on a shelf - you can:

• Line them up in a row or stack them in a column
• Space them evenly
• Center them perfectly
• Make them stretch to fill the space

:dart: Why Use Flexbox?

Flexbox helps you create dynamic and responsive layouts. This means your webpage looks good on phones, tablets, and computers!

:hammer_and_wrench: How to Use Flexbox

To create a flexbox layout, follow these simple steps:

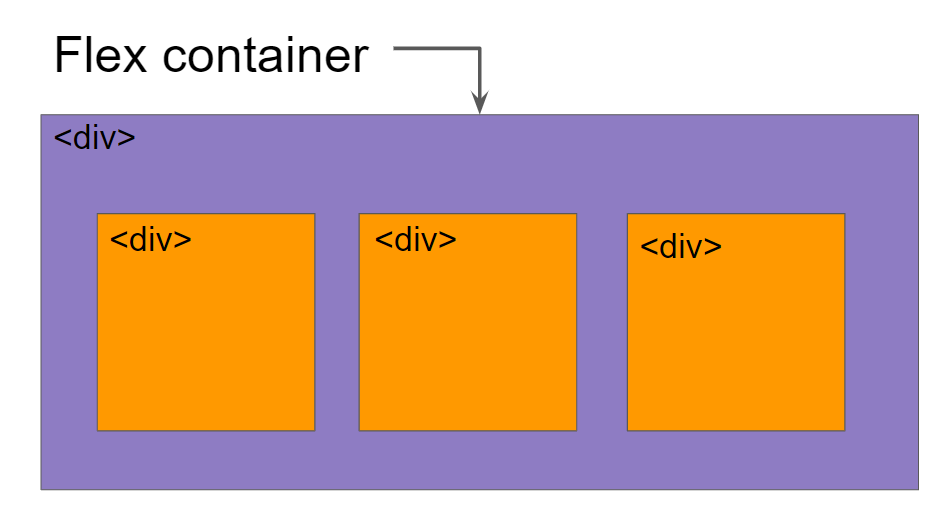

1. Find your container - This is the parent element (like a div)
2. Apply the flexbox block - Drag and drop the display: flex block
3. Add flexbox properties - Choose how items should arrange

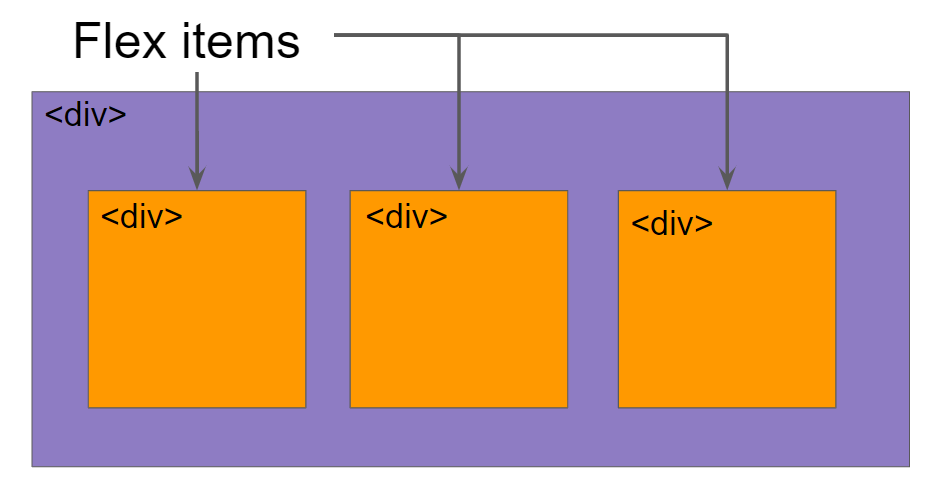

:bulb: Tip: Quick Start The magic happens when you add display: flex to a container. This turns it into a flex container, and all its children become flex items that you can control!

Important notes:

• Flexbox properties work on both the container and its items
• This lesson focuses on container properties
• The next lesson will cover individual item properties

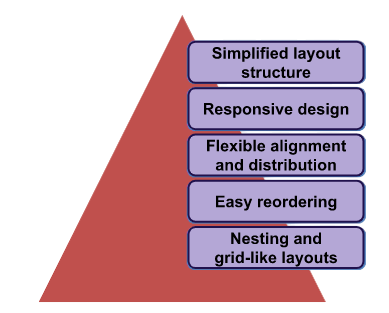

:star2: Benefits of CSS Flexbox

:emoji: Understanding Flex Layout

Traditional layouts use blocks that stack vertically. Flexbox introduces a new way of thinking about layout with two axes:

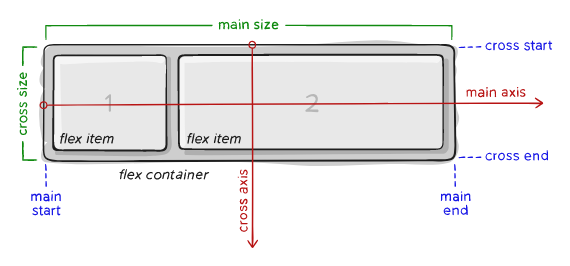

note Key Concept: Flex Axes

• Main Axis: The primary direction items flow (horizontal by default)
• Cross Axis: The perpendicular direction (vertical by default)

Think of it like reading a book:

• Main axis = left to right (how you read words)
• Cross axis = top to bottom (how you read lines)

Items arrange along the main axis (from main-start to main-end) and align along the cross axis (from cross-start to cross-end).

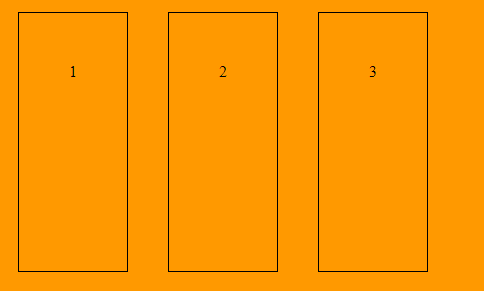

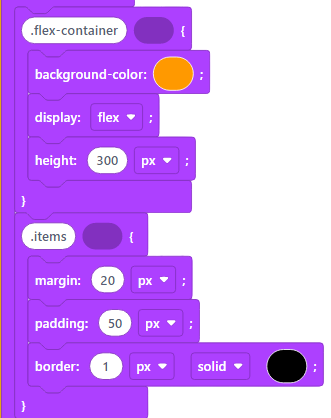

:bulb: Live Example

Try this interactive example: Open in EduBlocks

Code	Output

:art: Flex Container Properties

Now let's explore the powerful properties you can use on a flex container. Each property controls how items arrange and behave:

1️⃣ Display Property

Property	Value	Description and Output

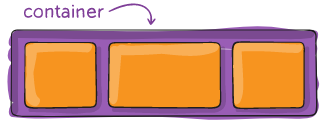

display	flex	This is the starting point! Add this to create a flex container.

2️⃣ Flex-Direction Property

Property	Value	Description and Output

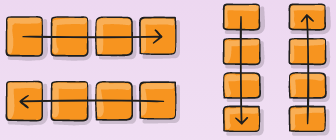

flex-direction	row (default) row-reverse column column-reverse	Controls the main axis direction. Like choosing if items line up horizontally or vertically!

3️⃣ Flex-Wrap Property

Property	Value	Description and Output
flex-wrap	nowrap wrap wrap-reverse	Decides if items should wrap to a new line when they run out of space.

4️⃣ Justify-Content Property

Property	Value	Description and Output

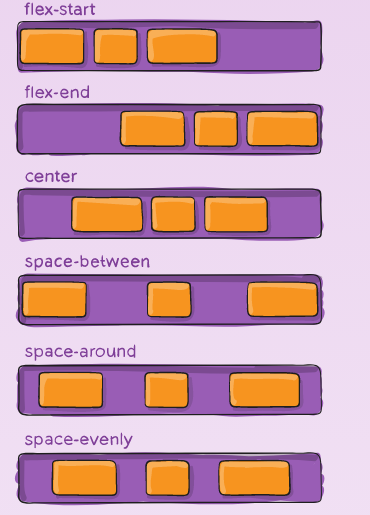

justify-content	flex-start flex-end center space-between space-around space-evenly	Controls spacing along the main axis. Perfect for centering or spreading items!

5️⃣ Align-Items Property

Property	Value	Description and Output

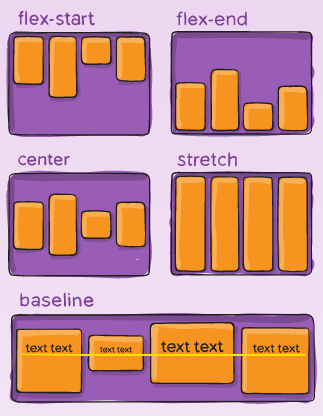

align-items	stretch flex-start flex-end center	Controls alignment along the cross axis. Use this to vertically center items!

:dart: Quick Summary

CSS Flexbox makes layout easy! Here's what you learned:

1. Flex Container - Add display: flex to any element
2. Two Axes - Main axis (primary direction) and cross axis (perpendicular)
3. Direction Control - Use flex-direction to change item flow
4. Spacing Magic - Use justify-content to space items perfectly
5. Alignment Power - Use align-items to align items vertically

:bulb: Tip: Pro Tip Start simple! Add display: flex to a container, then experiment with justify-content: center and align-items: center to center everything perfectly. It's like magic! :sparkles:

:rocket: Practice Time!

Now it's your turn to practice:

1. Create a Navigation Bar - Use flexbox to space menu items evenly
2. Build a Card Layout - Make cards that align nicely in rows
3. Center a Hero Section - Use flexbox to perfectly center content
4. Make a Photo Gallery - Create rows of images that wrap nicely

:wrench: Troubleshooting Tips

Having issues? Check these common problems:

• Items not flexing? Make sure you added display: flex to the parent container
• Wrong direction? Check your flex-direction value
• Items squished? Try adding flex-wrap: wrap
• Not centered? Use both justify-content: center AND align-items: center

Remember: Flexbox properties go on the container, not the individual items!
