Advanced Model Mechanisms: Attention & Output Generation

:dart: Learning Objectives

By the end of this lesson, you will be able to:

• Understand how attention mechanisms help AI models focus on important information
• Explain how self-attention works in transformer models like GPT
• Describe how language models generate text word by word
• Compare different strategies for generating creative vs. factual content
• Control AI output using temperature and other parameters
• Apply these concepts to write better prompts

:mag: The Attention Revolution

:information_source: Attention mechanisms revolutionized AI by allowing models to focus on the most relevant parts of their input - just like how you pay attention to specific words when reading a sentence. Before attention (pre-2014), AI models struggled with long texts and often forgot important context.

Attention Evolution: RNNs -> Attention (2014) -> Transformers (2017)

What is Attention?

Think of attention like a spotlight in your brain. When you read "The cat sat on the mat because it was tired," you automatically know "it" refers to the cat, not the mat. AI models use attention to make these same connections!

Watch: Attention in Language Models Explained

Key Benefits of Attention:

• Selective Focus: Models prioritize the most important words (like focusing on "cat" when understanding "it")
• Context Awareness: Better understanding of how words relate to each other
• Parallel Processing: Can process all words at once instead of one by one
• Long-Range Dependencies: Can connect ideas even when they're far apart in text

:emoji: Understanding Self-Attention

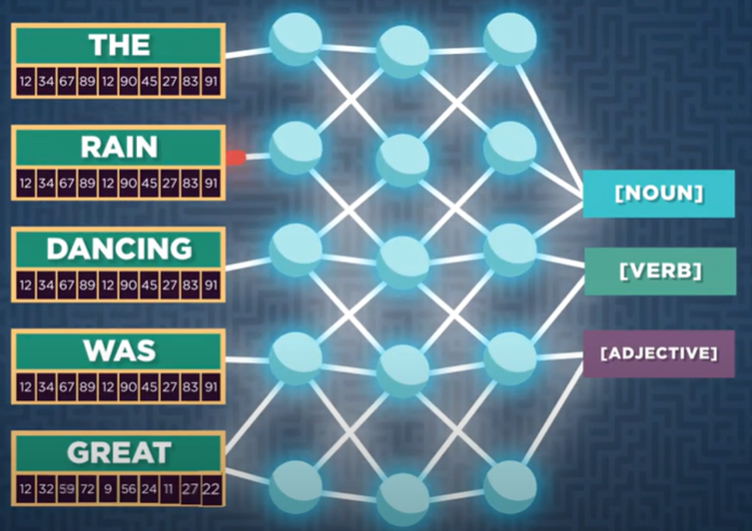

Self-attention is the secret sauce that makes transformer models like GPT so powerful. It helps the model understand which words are most important to each other.

How Self-Attention Works

:bulb: Think of self-attention like a classroom discussion where each word gets to ask questions (Query), provide answers (Key), and share information (Value).

1. Query, Key, and Value Vectors
   • Query: "What information am I looking for?" (like raising your hand with a question)
   • Key: "What information do I have?" (like knowing the answer)
   • Value: "Here's my actual information!" (like sharing your answer)

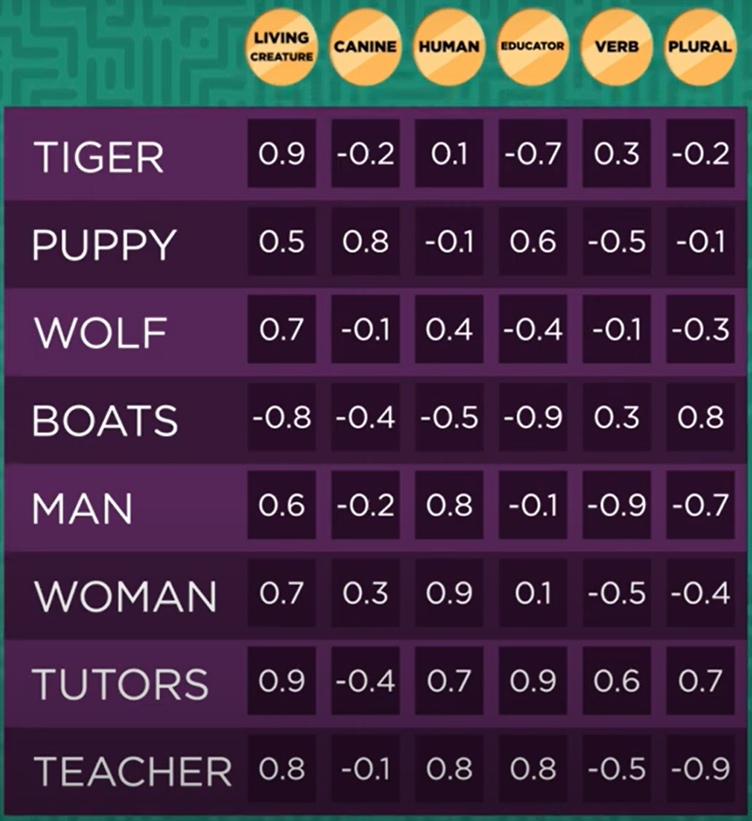

Q-K-V Transformation: Word Embeddings -> Linear Transforms -> Query/Key/Value Vectors

2. Attention Scores
   • The model calculates how much each word should "pay attention" to every other word
   • Higher scores mean stronger relationships (like "it" and "cat" have a high score)
3. Weighted Sum
   • The model combines information based on attention scores
   • Words with higher attention scores contribute more to the final understanding

Attention Scores: Query•Key calculations -> Softmax -> Weighted attention matrix

:bar_chart: Visual Example

Let's see attention in action with this sentence: "The cat sat on the mat because it was tired."

When the model processes "it," here's what happens:

• High attention score between "it" and "cat" (0.35) :white_check_mark:
• Low attention score between "it" and "mat" (0.07) :x:
• The model learned these patterns from millions of examples!

Pronoun Resolution: "it" -> high attention to "cat" (0.35), low to "mat" (0.07)

:emoji: Multi-Head Attention

Modern transformers use multiple attention mechanisms working together - like having a team of detectives examining clues from different angles! note Multi-head attention means the model uses many attention mechanisms at once. Each "head" looks for different patterns and relationships.

Think of it like a team project:

• One teammate focuses on grammar ("is this a question or statement?")
• Another focuses on meaning ("what's the main topic?")
• A third tracks characters ("who is doing what?")
• Together, they understand the full picture!

:emoji:️ The Transformer Architecture

Key Components

1. Encoder (in models like BERT)

   • Reads and understands the input text
   • Creates a deep understanding of context
   • Can look at words both before AND after (bidirectional)

2. Decoder (in models like GPT)

   • Generates new text one word at a time
   • Only looks at previous words (not future ones)
   • Uses what it has generated so far to predict the next word

3. Position Encoding

   • Tells the model which word comes first, second, third, etc.
   • Without this, the model wouldn't know word order!

Architecture Layers

Input → Embedding → Position Encoding →
[Multiple Transformer Blocks] →
Output Probabilities

Each transformer block is like a processing station that includes:

• Multi-head self-attention: The team of detectives we talked about
• Feed-forward neural network: Additional processing power
• Normalization layers: Keeps numbers in a good range
• Residual connections: Shortcuts that help learning

:memo: Output Generation Process

From Probabilities to Text

When a language model generates text, it works like a really smart autocomplete:

1. Context Processing :mag:

   • The model reads your prompt
   • It builds an understanding of what you want

2. Next Token Prediction :dart:

   • The model predicts what word should come next
   • It assigns a probability to every possible word

3. Token Selection :emoji:

   • The model picks one word based on its strategy
   • This word gets added to the output

4. Iteration :emoji:

   • The new word becomes part of the context
   • The process repeats until the text is complete

In-Lesson Activity: Mad-Lib Generation

Let's see how language models generate text by creating a Mad-Lib!

Instructions:

1. Open the following Studio Code link during class time: Mad-Lib Generation
2. Follow the prompts to create your own Mad-Lib by filling in the blanks.
3. Explore the options to view data from other participants and see how the model generates a Mad-Lib based on collective choices.

Tip: Experiment with different words to see how the generated story changes.

:emoji: Vocabulary and Tokenization

Before the model can work with text, it needs to break it into smaller pieces called tokens:

:information_source: Tokenization is like breaking a chocolate bar into squares - you need smaller pieces to work with!

• Tokens: The smallest units the model understands (words, parts of words, or punctuation)
• Vocabulary: All the tokens the model knows (like its dictionary)
• Special Tokens: Special markers like [START], [END], or [UNKNOWN]

Examples of tokenization:

• "Hello, world!" -> ["Hello", ",", " world", "!"]
• "Unbelievable" -> ["Un", "believ", "able"]

:dart: Decoding Strategies

How does the model choose which word to use next? It has several strategies!

Greedy Decoding

This strategy always picks the word with the highest probability - like always choosing the most popular answer.

Advantages:

• Super fast and predictable
• Great for factual information (like math problems)

Disadvantages:

• Can get boring and repetitive
• Might miss creative alternatives

Beam Search

This strategy explores multiple paths at once - like planning several possible routes on a map.

How it works:

• Keeps track of several good options (not just the best one)
• Explores where each option leads
• Picks the best overall path

Trade-offs:

• Creates better text than greedy decoding
• Takes more time and computing power
• Still fairly predictable

Sampling Methods

These strategies add randomness for more creative outputs!

Random Sampling

Picks words randomly based on their probabilities - like rolling weighted dice.

Top-k Sampling

Only considers the k most likely words (e.g., top 10 choices).

Top-p (Nucleus) Sampling

Includes words until their combined probability reaches p (e.g., 0.9 or 90%).

:bulb: Example with p=0.9: If the model's top predictions are:

• "happy" (40%)
• "excited" (30%)
• "joyful" (25%)
• "thrilled" (5%)

It would consider the first three words (40% + 30% + 25% = 95% > 90%)

:emoji:️ Temperature and Creativity

Temperature is like a creativity dial for AI - turn it up for wild ideas, turn it down for safe choices!

Temperature Effects

:memo: Temperature controls how adventurous the AI is when picking words:

• Temperature = 0: Always picks the safest choice (boring but reliable)
• ``Temperature < 1``: Plays it safe (good for homework help)
• Temperature = 1: Balanced approach (normal conversation)
• ``Temperature > 1``: Gets creative and wild (great for stories!)

Visual Examples

Low Temperature (0.2):
"The sky is blue" ✓
"The sky is clear" ✓

High Temperature (1.5):
"The sky is dancing" 🎨
"The sky is melting" 🎨

:video_game: Controlling Output Generation

Key Parameters

You can control AI output using these settings:

1. Max Length: The longest the output can be (like a word limit)
2. Min Length: The shortest the output can be (prevents one-word answers)
3. Repetition Penalty: Stops the AI from repeating itself too much
4. Length Penalty: Encourages longer or shorter responses
5. Stop Sequences: Special words that make the AI stop (like "THE END")

Practical Examples

Creative Writing (High Temperature, Top-p):

temperature=1.2
top_p=0.95
repetition_penalty=1.2

Technical Documentation (Low Temperature, Greedy):

temperature=0.3
top_k=10
repetition_penalty=1.0

:rocket: Advanced Techniques

Conditional Generation

You can tell the AI to write in specific ways:

• Style Transfer: "Write like Shakespeare" or "Write like a sports announcer"
• Attribute Control: "Make it formal" or "Make it funny"
• Domain Adaptation: Use special vocabulary (medical terms, gaming slang, etc.)

Constrained Generation

You can set rules the AI must follow:

• Format Constraints: "Output as a list" or "Write in JSON format"
• Length Constraints: "Exactly 50 words" or "Three sentences"
• Content Constraints: "Must include the word 'adventure'"

:bar_chart: Understanding Model Confidence

Probability Distributions

The AI assigns confidence scores to each word choice:

• High probability (90%): The model is very confident
• Low probability (10%): The model is guessing
• Even spread: Many good options to choose from

Perplexity

:information_source: Perplexity measures how surprised the model is by text. Think of it like a "confusion score":

• Low perplexity: "This makes perfect sense!" :emoji:
• High perplexity: "This is weird and unexpected!" :emoji:

:hammer_and_wrench: Common Challenges and Solutions

Challenge One: Repetitive Output

Problem: The AI keeps saying the same thing over and over.

Why it happens:

• Using greedy decoding (always picking the "safest" word)
• The model learned repetitive patterns from its training

How to fix it:

• Use sampling methods instead of greedy decoding
• Turn on repetition penalty
• Increase the temperature slightly

Challenge 2: Incoherent Long Text

Problem: The AI loses track of what it's talking about in long responses.

Why it happens:

• The attention mechanism has limits
• The context drifts away from the original topic

How to fix it:

• Break your request into smaller parts
• Remind the AI of the context ("Remember, we're talking about...")
• Use clear structure in your prompts

Challenge 3: Factual Hallucinations

Problem: The AI makes up facts that aren't true.

Why it happens:

• The model generates text probabilistically (it's guessing!)
• It might not have learned certain facts

How to fix it:

• Use lower temperature for factual tasks
• Ask the AI to cite sources
• Double-check important facts

:bulb: Practical Applications

Optimizing for Different Use Cases

Chat Applications (like talking to a friend):

• Temperature: 0.7-0.9 (balanced)
• Strategy: Top-p sampling
• Repetition penalty: Medium

Code Generation (writing programs):

• Temperature: 0.2-0.5 (very low)
• Strategy: Beam search or greedy
• Format: Strict (must be valid code!)

Creative Writing (stories and poems):

• Temperature: 0.9-1.3 (high)
• Strategy: Top-p with p=0.95
• Constraints: Minimal (let creativity flow!)

:books: Key Terms Review

• Attention Mechanism: How AI models focus on important information (like a spotlight)
• Self-Attention: When the model looks at relationships within the same text
• Multi-Head Attention: Using multiple attention mechanisms at once (like a team of detectives)
• Transformer: The AI architecture that uses attention as its superpower
• Decoding Strategy: The method for choosing which word comes next
• Temperature: The "creativity dial" that controls randomness (0 = boring, 1+ = creative)
• Beam Search: Exploring multiple word choices at once to find the best path
• Top-p Sampling: Choosing from words until you reach a certain probability threshold
• Tokenization: Breaking text into smaller pieces the model can understand

:dart: Summary

In this lesson, you learned how AI models work under the hood:

:white_check_mark: Attention mechanisms help AI focus on what's important - like how you naturally know "it" refers to "cat" in a sentence

:white_check_mark: Self-attention lets models understand relationships between words, while multi-head attention examines text from multiple angles

:white_check_mark: Output generation happens word by word, with the model predicting what comes next based on probabilities

:white_check_mark: Temperature controls creativity - low for facts, high for fiction!

:white_check_mark: Different decoding strategies (greedy, beam search, sampling) affect how creative or predictable the output is

Remember: The AI's output depends on both how it was trained AND the settings you choose. Understanding these mechanisms helps you write better prompts and get better results!

:rocket: Practice Prompts

Try these experiments to see attention and generation in action:

1. Temperature Test: Ask an AI to describe a sunset with temperature 0.2, then 1.2. Compare the results!

2. Attention Challenge: Give the AI a sentence with pronouns and ask it to identify what each pronoun refers to.

3. Decoding Comparison: Request the same story outline using greedy decoding vs. top-p sampling.

4. Token Exploration: Ask the AI to show how it would tokenize your name or a complex word.

5. Control Experiment: Generate a haiku with strict constraints (exactly 17 syllables, must include "moon").

Next Steps

In the next lesson, we'll explore how to interact effectively with language models through prompt engineering, using your new understanding of attention and generation to craft amazing prompts!
